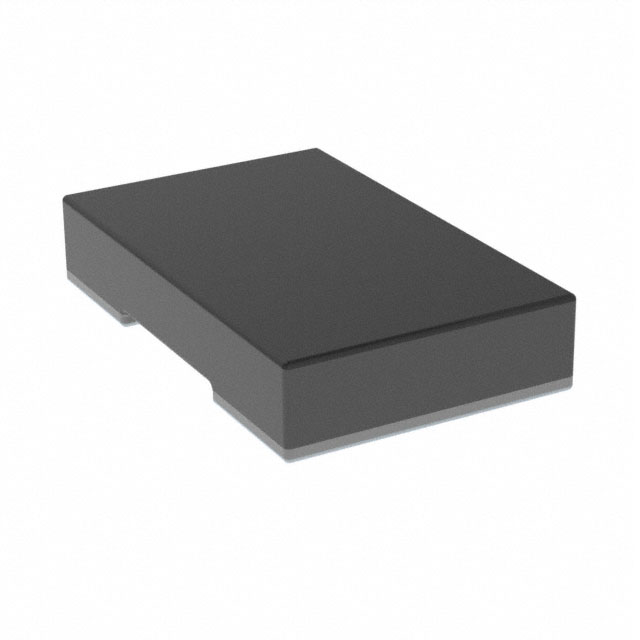

Specification	TLR2ATTD3L00F

Composition	Metal Element
Features	Current Sense, Automotive AEC-Q200
Height - Seated (Max)	0.016 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-65 °C
Package / Case	0805 (2012 Metric)
Package Name	0805
Power (Watts)	1 W
Ratings	AEC-Q200
Resistance	3 mOhms
Size / Dimension Length	0.079 in
Size / Dimension Width	0.049 in
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

TLR2A Series

Part	Ratings	Resistance	Tolerance	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Composition	Package Name	Number of Terminations	Features	Size / Dimension Length	Size / Dimension Width	Height - Seated (Max)	Package / Case	Temperature Coefficient
KOA Speer Electronics, Inc. TLR2ATTD4L00F	AEC-Q200	4 mOhms	1 %	1 W	155 °C	-65 °C	Metal Element	0805	2	Automotive AEC-Q200 Current Sense	0.079 in	0.049 in	0.016 in	0805 (2012 Metric)	100 ppm/°C
KOA Speer Electronics, Inc. TLR2ATTD10L0F	AEC-Q200	10 mOhms	1 %	1 W	155 °C	-65 °C	Metal Element	0805	2	Automotive AEC-Q200 Current Sense	0.079 in	0.049 in	0.022 in	0805 (2012 Metric)	100 ppm/°C
KOA Speer Electronics, Inc. TLR2ATTD3L00F	AEC-Q200	3 mOhms	1 %	1 W	155 °C	-65 °C	Metal Element	0805	2	Automotive AEC-Q200 Current Sense	0.079 in	0.049 in	0.016 in	0805 (2012 Metric)	100 ppm/°C
KOA Speer Electronics, Inc. TLR2ATTD6L00F	AEC-Q200	6 mOhms	1 %	1 W	155 °C	-65 °C	Metal Element	0805	2	Automotive AEC-Q200 Current Sense	0.079 in	0.049 in	0.018 in	0805 (2012 Metric)	100 ppm/°C
