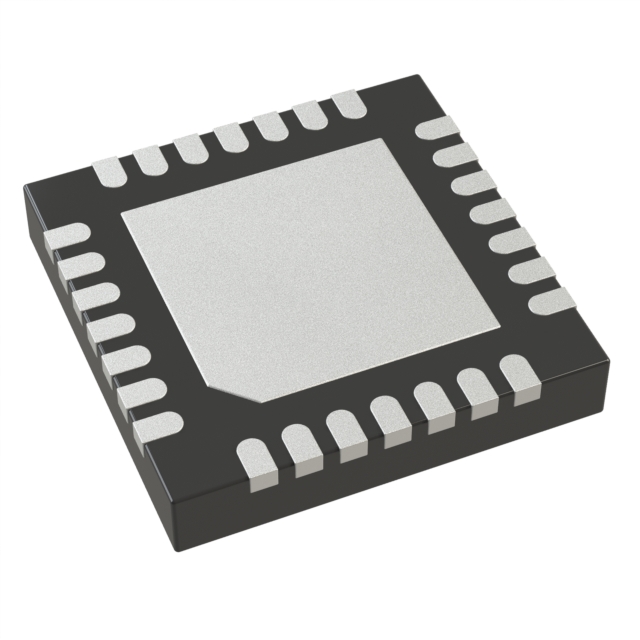

SI5013-D-GMR

Obsolete

Skyworks Solutions Inc.

IC CLOCK/DATA RECOVERY 28MLP

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

IC CLOCK/DATA RECOVERY 28MLP

Technical Specifications

Parameters and characteristics for this part

Specification	SI5013-D-GMR

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Frequency - Max [Max]	675 MHz
Input	Clock
Main Purpose	SONET/SDH, ATM applications
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	CML
Package / Case	28-VFQFN Exposed Pad
PLL	True
Ratio - Input:Output [custom]	1:2
Supplier Device Package	28-MLP (5x5)
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	3.135 V

Part	PLL	Output	Input	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Supplier Device Package	Frequency - Max [Max]	Ratio - Input:Output [custom]	Main Purpose	Package / Case	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits
Skyworks Solutions Inc. SI5013-D-GMR		CML	Clock	3.465 V	3.135 V	Surface Mount	28-MLP (5x5)	675 MHz	1:2	SONET/SDH ATM applications	28-VFQFN Exposed Pad			85 °C	-40 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SONET/SDH, ATM applications IC 675MHz 1 Output 28-MLP (5x5)

Technical documentation and resources

No documents available
