FGS.1F.303.CLM

Active

LEMO

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FMALE 3POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

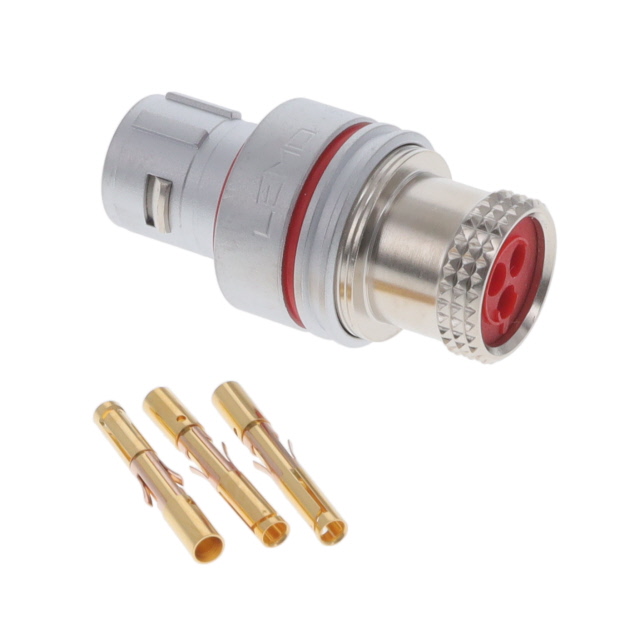

3 Position Circular Connector Plug, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FGS.1F.303.CLM	FGS.1F Series

Applications	Aerospace	Aerospace
Cable Opening [custom]	0.421 in	0.421 in
Cable Opening [custom]	10.7 mm	10.7 mm
Color	Silver	Silver, Gray
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	12 A	5 - 12 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	7 - 8
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 - -15 °C
Orientation	S	S
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Nickel
Shell Material	Brass	Brass, Aluminum Alloy
Shell Size - Insert	303	303 - 308
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Shell Size - Insert	Shell Material	Mounting Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [custom]	Cable Opening [custom]	Orientation	Shielding	Contact Material	Termination	Applications	Insert Material	Color	Material Flammability Rating	Shell Finish	Contact Finish - Mating	Connector Type	Primary Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Number of Positions
LEMO FGS.1F.303.CLM	303	Brass	Free Hanging (In-Line)	12 A	59 Áin	1.5 Ám	0.421 in	10.7 mm	S	Shielded	Bronze	Crimp	Aerospace	Polyetheretherketone (PEEK)	Silver	UL94 V-0	Chrome	Gold	Female Sockets, Plug	Metal	Push-Pull	-55 °C	200 °C	IP67 - Dust Tight, Waterproof
LEMO FGS.1F.307.XLM	307	Aluminum Alloy	Free Hanging (In-Line)	7 A	59 Áin	1.5 Ám	0.421 in	10.7 mm	S	Shielded	Bronze	Crimp	Aerospace	Polyetheretherketone (PEEK)	Gray	UL94 V-0	Nickel	Gold	Female Sockets, Plug	Metal	Push-Pull	-15 °C	200 °C	IP67 - Dust Tight, Waterproof	7
LEMO FGS.1F.308.XLM	308	Aluminum Alloy	Free Hanging (In-Line)	5 A	59 Áin	1.5 Ám	0.421 in	10.7 mm	S	Shielded	Bronze	Crimp	Aerospace	Polyetheretherketone (PEEK)	Gray	UL94 V-0	Nickel	Gold	Female Sockets, Plug	Metal	Push-Pull	-15 °C	200 °C	IP67 - Dust Tight, Waterproof	8
LEMO FGS.1F.303.XLM	303	Aluminum Alloy	Free Hanging (In-Line)	12 A	59 Áin	1.5 Ám	0.421 in	10.7 mm	S	Shielded	Bronze	Crimp	Aerospace	Polyetheretherketone (PEEK)	Gray	UL94 V-0	Nickel	Gold	Female Sockets, Plug	Metal	Push-Pull	-15 °C	200 °C	IP67 - Dust Tight, Waterproof
