SC-100-SM-RA

Active

Amphenol Times Microwave Systems

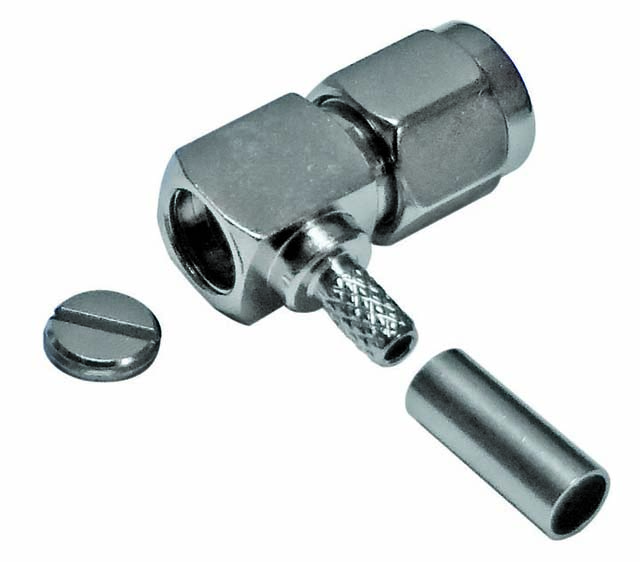

SMA-MALE (PLUG) RIGHT ANGLE CRIM

Deep-Dive with AI

Search across all available documentation for this part.

SC-100-SM-RA

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) RIGHT ANGLE CRIM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SC-100-SM-RA	SC-100 Series

	-	-
Body Finish	Nickel	Gold, Nickel
Body Material	Brass	Brass
Cable Group	LMR-100A	LMR-100, LMR-100A
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	SMA	MCX, SMA, N Type, TNC
Connector Type	Male Pin, Plug	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder, Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On
Frequency - Max [Max]	6000 MHz	2.5 - 6000 MHz
Housing Color	Silver	Gold, Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	-	500 - 1000 V

SC-100 Series

MCX-FEMALE (PLUG) CRIMP CONNECTO

Part	Frequency - Max [Max]	Center Contact Plating	Shield Termination	Housing Color	Voltage Rating	Number of Ports	Contact Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Connector Style	Mating Cycles	Mounting Type	Cable Group	Connector Type	Dielectric Material	Impedance	Body Material	Body Finish	Mounting Feature
Amphenol Times Microwave Systems SC-100-MCXF	6000 MHz	Gold	Crimp	Gold	500 V	1	Solder	Snap-On	-55 °C	125 °C	Beryllium Copper	MCX	500	Free Hanging (In-Line)	LMR-100	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Gold
Amphenol Times Microwave Systems SC-100-SM-RA	6000 MHz	Gold	Crimp	Silver		1	Solder		-40 °C	125 °C	Brass	SMA	500	Free Hanging (In-Line), Right Angle	LMR-100A	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Nickel
Amphenol Times Microwave Systems SC-100-SF	6000 MHz	Gold	Crimp	Silver	500 V	1	Solder		-55 °C	125 °C	Beryllium Copper	SMA	500	Free Hanging (In-Line)	LMR-100A	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Nickel
Amphenol Times Microwave Systems SC-100-NF-BH	2.5 GHz	Gold	Crimp	Silver	1000 VDC	1	Push On		-40 °C	85 °C	Beryllium Copper, Brass	N Type			LMR-100	Female Socket, Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Nickel	Bulkhead - Front Side Nut
Amphenol Times Microwave Systems SC-100-SM	6000 MHz	Gold	Crimp	Silver		1	Solder		-40 °C	125 °C	Brass	SMA	500	Free Hanging (In-Line)	LMR-100	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Nickel
Amphenol Times Microwave Systems SC-100-NF
Amphenol Times Microwave Systems SC-100-NM
Amphenol Times Microwave Systems SC-100-TM	6000 MHz	Gold	Crimp	Silver		1	Solder		-40 °C	125 °C	Beryllium Copper, Brass	TNC	500	Free Hanging (In-Line)	LMR-100A	Male Pin, Plug	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	31	$ 10.70
		40	$ 9.13

Description

General part information

SC-100 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
