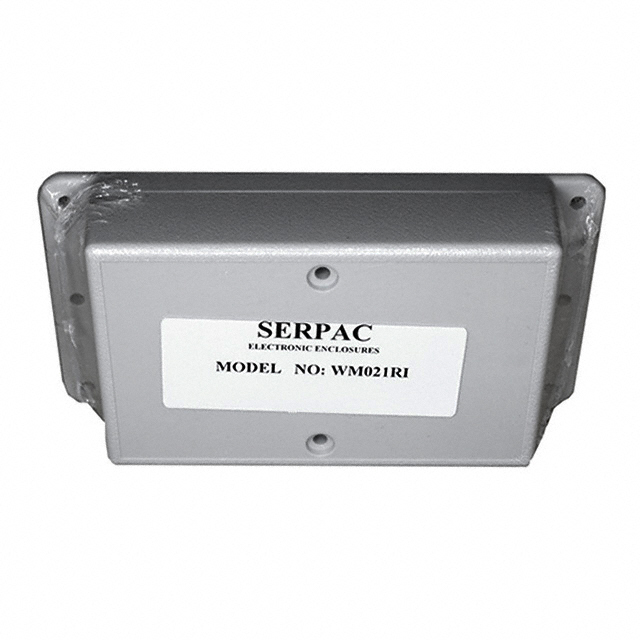

WM021RI,GY

Active

Serpac

BOX ABS GRAY 4.1"L X 2.6"W

Deep-Dive with AI

Search across all available documentation for this part.

WM021RI,GY

Active

Serpac

BOX ABS GRAY 4.1"L X 2.6"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WM021RI,GY	WM021 Series

Area (L x W)	10.7 in²	10.7 in²
Area (L x W)	69 cm²	69 cm²
Color	Gray	Black, Gray, Almond
Container Type	Box	Box
Design	Cover Included	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height [z]	27.94 mm	27.94 mm
Height [z]	1.1 in	1.1 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	104.14 mm	104.14 mm
Size / Dimension [x]	4.1 "	4.1 "
Size / Dimension [y]	2.6 "	2.6 "
Size / Dimension [y]	66.04 mm	66.04 mm
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	65.77 g	65.77 g
Weight	0.145 lb	0.145 lb

WM021 Series

BOX ABS BLACK 4.1"L X 2.6"W

Part	Container Type	Color	Weight	Weight	Design	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]	Material	Thickness	Thickness	Material Flammability Rating	Area (L x W)	Area (L x W)	Ratings
Serpac WM021R,BK	Box	Black	65.77 g	0.145 lb	Cover Included	Front Access, Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1
Serpac WM021RI,BK	Box	Black	65.77 g	0.145 lb	Cover Included	Front Access, Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1
Serpac WM021,GY	Box	Gray	65.77 g	0.145 lb	Cover Included	Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1
Serpac WM021,BK	Box	Black	65.77 g	0.145 lb	Cover Included	Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1
Serpac WM021R,AL	Box	Almond	65.77 g	0.145 lb	Cover Included	Front Access, Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1
Serpac WM021R,GY	Box	Gray	65.77 g	0.145 lb	Cover Included	Front Access, Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1
Serpac WM021RI,GY	Box	Gray	65.77 g	0.145 lb	Cover Included	Front Access, Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1
Serpac WM021,AL	Box	Almond	65.77 g	0.145 lb	Cover Included	Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1
Serpac WM021I,BK	Box	Black	65.77 g	0.145 lb	Cover Included	Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1
Serpac WM021I,AL	Box	Almond	65.77 g	0.145 lb	Cover Included	Mounting Flange, PCB Supports, Wall Mount	2.6 "	66.04 mm	104.14 mm	4.1 "	27.94 mm	1.1 in	Plastic, ABS	2.54 mm	0.1 in	UL94 HB	10.7 in²	69 cm²	IP40, NEMA 1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.01
		10	$ 7.87
		25	$ 7.15
		50	$ 6.15
		100	$ 5.44
		250	$ 5.04

Description

General part information

WM021 Series

Box Plastic, ABS Gray Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 1.100" (27.94mm)
