Specification	MKT1820639065

Applications	DC Filtering, DC Link
Capacitance	39 µF
Dielectric Material	Polyester, Metallized
Height - Seated (Max)	0.906 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	1.26 in
Size / Dimension Width	0.512 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	40 V
Voltage Rating - DC	63 V

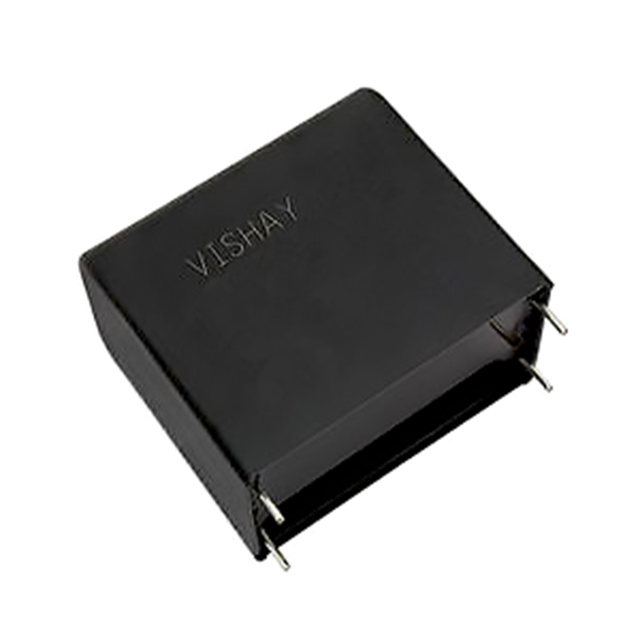

MKT1820 Series

Part	Voltage Rating - AC	Tolerance	Voltage Rating - DC	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Lead Spacing	Applications	Package / Case	Mounting Type	Height - Seated (Max)	Capacitance	Size / Dimension Length	Size / Dimension Width
Vishay Dale MKT1820447405	200 Vpk	10 %	400 V	Metallized Polyester	125 °C	-55 °C	PC Pins	0.591 in	DC Filtering DC Link	Radial	Through Hole	0.571 in	0.47 µF	0.709 in	0.335 in
Vishay Dale MKT1820710015	63 V	10 %	100 V	Metallized Polyester	125 °C	-55 °C	PC Pins	1.476 in	DC Filtering DC Link	Radial	Through Hole	1.516 in	100 µF	1.693 in	0.846 in
Vishay Dale MKT1820410254	160 V	5 %	250 VDC	Metallized Polyester	125 °C	-55 °C	PC Pins	0.394 in	DC Filtering DC Link	Radial	Through Hole	0.374 in	0.1 µF	0.512 in	0.177 in
Vishay Dale MKT1820615014	63 V	5 %	100 V	Metallized Polyester	125 °C	-55 °C	PC Pins	1.083 in	DC Filtering DC Link	Radial	Through Hole	0.827 in	15 µF	1.26 in	0.433 in
Vishay Dale MKT1820610255	160 V	10 %	250 VDC	Metallized Polyester	125 °C	-55 °C	PC Pins	1.083 in	DC Filtering DC Link	Radial	Through Hole	0.984 in	10 µF	1.26 in	0.591 in
Vishay Dale MKT1820647065	40 V	10 %	63 V	Metallized Polyester	125 °C	-55 °C	PC Pins	1.083 in	DC Filtering DC Link	Radial	Through Hole	0.984 in	47 µF	1.26 in	0.591 in
Vishay Dale MKT1820715065	40 V	10 %	63 V	Metallized Polyester	125 °C	-55 °C	PC Pins	1.476 in	DC Filtering DC Link	Radial	Through Hole	1.398 in	150 µF	1.693 in	0.728 in
Vishay Dale MKT1820433405	200 Vpk	10 %	400 V	Metallized Polyester	125 °C	-55 °C	PC Pins	0.591 in	DC Filtering DC Link	Radial	Through Hole	0.532 in	0.33 µF	0.709 in	0.295 in
Vishay Dale MKT1820639065	40 V	10 %	63 V	Metallized Polyester	125 °C	-55 °C	PC Pins	1.083 in	DC Filtering DC Link	Radial	Through Hole	0.906 in	39 µF	1.26 in	0.512 in
Vishay Dale MKT1820515255	160 V	10 %	250 VDC	Metallized Polyester	125 °C	-55 °C	PC Pins	0.591 in	DC Filtering DC Link	Radial	Through Hole	0.689 in	1.5 µF	0.709 in	0.413 in
