ATM3PS-CKIT
ActiveMcGill Microwave Systems

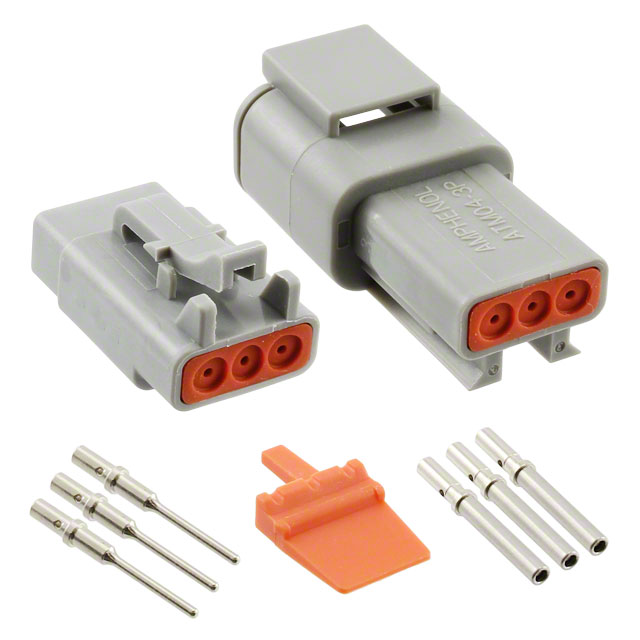

KIT, ATM SERIES, 3 POSITION PLUG, RECEPTACLE, CONTACTS, AND WEDGELOCKS
ATM3PS-CKIT
ActiveMcGill Microwave Systems
KIT, ATM SERIES, 3 POSITION PLUG, RECEPTACLE, CONTACTS, AND WEDGELOCKS
Description
General part information
ATM3PS Series
3 Position Rectangular Plug and Receptacle Connector Crimp 16-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | ATM3PS-CKIT |
|---|---|
| Cable Termination | Crimp |
| Color | Gray |
| Connector Type | Receptacle, Plug |
| Contact Type | Female Socket, Male Pin |
| Fastening Type | Latch Lock |
| Features | Wedge Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
