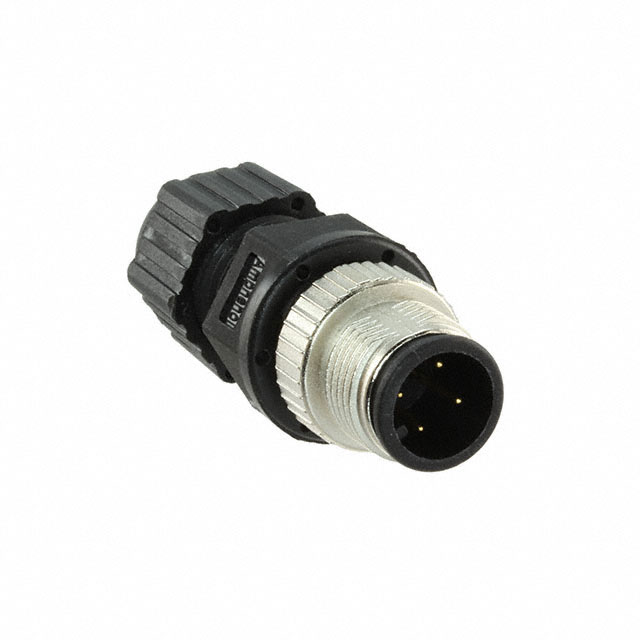

Specification	12D-04BMMA-SL8001

Backshell Material, Plating	Nylon, Polyamide (PA)
Color	Black, Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	4 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Glass Filled, PA, Polyamide, Nylon
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Solder Cup

12D-04BMMA Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Shell Size - Insert	Number of Positions	Fastening Type	Shielding	Primary Material	Orientation	Contact Material	Mounting Type	Ingress Protection IP Rating	Ingress Protection Description	Color	Shell Material	Connector Type	Shell Finish	Contact Finish - Mating	Backshell Material, Plating	Current Rating	Features	Termination
McGill Microwave Systems 12D-04BMMA-SL8001	-40 °C	105 °C	Glass Filled Nylon PA Polyamide	M12-4	4	Threaded	Unshielded	Metal	D	Copper Alloy	Free Hanging (In-Line)	IP68	Dust Tight Waterproof	Black Silver	Zinc Alloy	Male Pins Plug	Nickel	Gold	Nylon Polyamide (PA)	4 A	Backshell	Solder Cup

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
