208241 Series

Part	Impedance	Housing Color	Frequency - Max	Features	Mounting Type	Connector Type	Connector Style	Number of Ports	Shield Termination	Contact Termination	Center Contact Material	Fastening Type	Features - Code

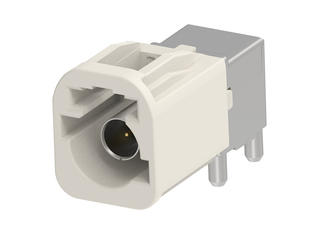

Molex 2082410201	50 Ohm	White	9 GHz	Code B	Right Angle Through Hole	Male Pin Plug	Fakra HFM®	1	Solder	Solder	Bronze	Latch Lock

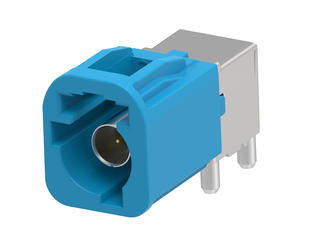

Molex 2082410202	50 Ohm	Blue	9 GHz	Code C	Right Angle Through Hole	Male Pin Plug	Fakra HFM®	1	Solder	Solder	Bronze	Latch Lock
Molex 2082410213	50 Ohm	Orange Pastel	9 GHz	Code N	Right Angle Through Hole	Male Pin Plug	Fakra HFM®	1	Solder	Solder	Bronze	Latch Lock
Molex 2082410203	50 Ohm	Claret Violet	9 GHz	Code D	Right Angle Through Hole	Male Pin Plug	Fakra HFM®	1	Solder	Solder	Bronze	Latch Lock
Molex 2082410205	50 Ohm	Brown	9 GHz	Code F	Right Angle Through Hole	Male Pin Plug	Fakra HFM®	1	Solder	Solder	Bronze	Latch Lock
Molex 2082410209	50 Ohm	Curry	9 GHz	Code K	Right Angle Through Hole	Male Pin Plug	Fakra HFM®	1	Solder	Solder	Bronze	Latch Lock
Molex 2082410207	50 Ohm	Light Pink	9 GHz	Code H	Right Angle Through Hole	Male Pin Plug	Fakra HFM®	1	Solder	Solder	Bronze	Latch Lock
Molex 2082410204	50 Ohm	Green	9 GHz	Code E	Right Angle Through Hole	Male Pin Plug	Fakra HFM®	1	Solder	Solder	Bronze	Latch Lock	E
Molex 2082410200	50 Ohm	Black	9 GHz	Code A	Right Angle Through Hole	Male Pin Plug	Fakra HFM®	1	Solder	Solder	Bronze	Latch Lock	A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
