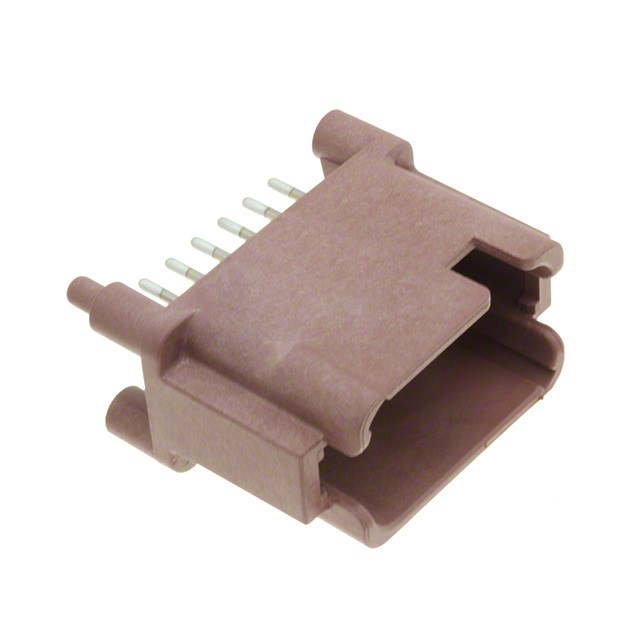

DTF15-12PD
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER VERT 12POS 4.44MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DTF15-12PD
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER VERT 12POS 4.44MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DTF15-12PD |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Mating | Nickel |
| Contact Finish - Post | Tin |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Brown |
| Insulation Height | 34.98 mm |
| Insulation Height [z] | 1.377 in |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.175 in |
| Pitch - Mating | 4.44 mm |
| Row Spacing - Mating | 9.12 mm |
| Row Spacing - Mating | 0.359 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.29 | |
| 10 | $ 10.21 | |||
| 25 | $ 9.23 | |||
| 40 | $ 8.77 | |||
| 80 | $ 8.15 | |||
| 230 | $ 7.31 | |||
| 440 | $ 6.86 | |||
| 945 | $ 6.37 | |||
Description
General part information
DTF15 Series
Connector Header Through Hole 12 position 0.175" (4.44mm)
