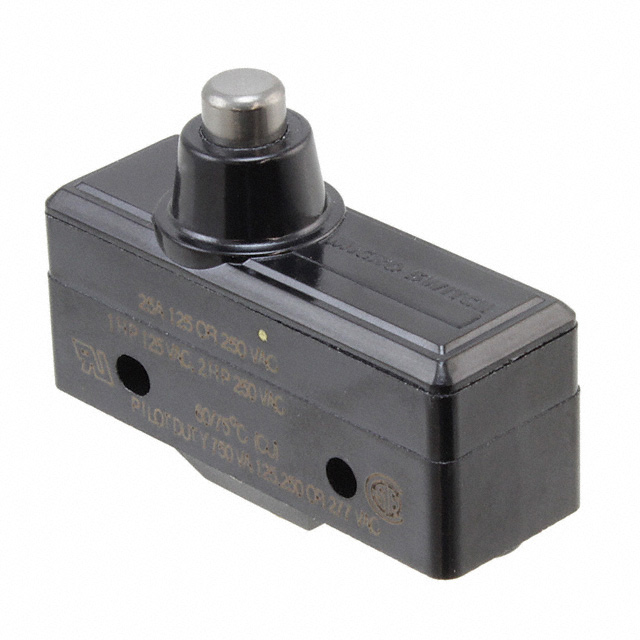

YE-2RB-A2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 25A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 25A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACT SPST-NO 25A 125V

Part	Pretravel	Pretravel	Differential Travel	Differential Travel	Mounting Type	Overtravel	Overtravel	Release Force	Mechanical Life	Circuit	Termination Style	Operating Force [Min]	Operating Force [Max]	Actuator Type	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions YE-2RB-A2	0.05 in	1.27 mm	0.007 in	0.18 mm	Chassis Mount	0.094 in	2.4 mm	283 gf	20000000 Cycles	SPST-NO	Screw Terminal	397 gf	624 gf	Round (Pin Plunger)	25 A	Off-Mom	85 °C	-55 °C	125 V	26.2 mm	1.03 "
Honeywell Sensing and Productivity Solutions YE-2RB-A4	0.05 in	1.27 mm	0.007 in	0.18 mm	Chassis Mount	0.094 in	2.4 mm	283 gf	20000000 Cycles	SPST-NO	Screw Terminal	397 gf	624 gf	Round (Pin Plunger)	25 A	Off-Mom	85 °C	-55 °C	125 V	26.2 mm	1.03 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NO Chassis Mount
