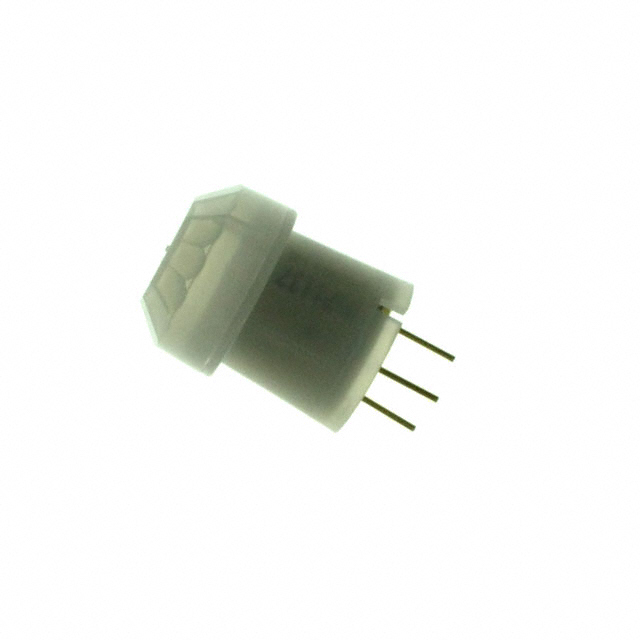

AMN32112
ActivePanasonic Electric Works
SENSOR SLIGHT MOTION 5V WHT LEN
Deep-Dive with AI
Search across all available documentation for this part.
AMN32112
ActivePanasonic Electric Works
SENSOR SLIGHT MOTION 5V WHT LEN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMN32112 |
|---|---|
| Detection Pattern | Slight |
| Features | White, Slight Motion Lens |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Cylinder |
| Sensing Distance | 78.7 " |
| Sensing Distance | 2 m |
| Sensing Distance | 6.6 ' |
| Sensor Type | PIR (Passive Infrared) |
| Trigger Type | Internal |
| Voltage - Supply [Max] | 6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.12 | |
| 10 | $ 15.93 | |||
| 25 | $ 15.09 | |||
| 100 | $ 12.99 | |||
| 500 | $ 12.16 | |||
Description
General part information
AMN321 Series
Sensor PIR (Passive Infrared) 78.7" (2m) 6.6' Slight Motion Lens, White Cylinder
