EFR32ZG23B020F512IM48-B
Silicon Labs
IC RF TXRX+MCU ISM<1GHZ 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
EFR32ZG23B020F512IM48-B
Silicon Labs
IC RF TXRX+MCU ISM<1GHZ 48QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFR32ZG23B020F512IM48-B |
|---|---|
| Current - Receiving [Max] | 7.6 mA |
| Current - Receiving [Min] | 6.8 mA |
| Current - Transmitting [Max] | 41.3 mA |
| Current - Transmitting [Min] | 16 mA |
| Data Rate (Max) | 100 kbps |
| Frequency [Max] | 928 MHz, 870 MHz |
| Frequency [Min] | 863 MHz, 902 MHz |
| GPIO | 31 |
| Modulation | DSSS, 2GFSK, O-QPSK, 2FSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

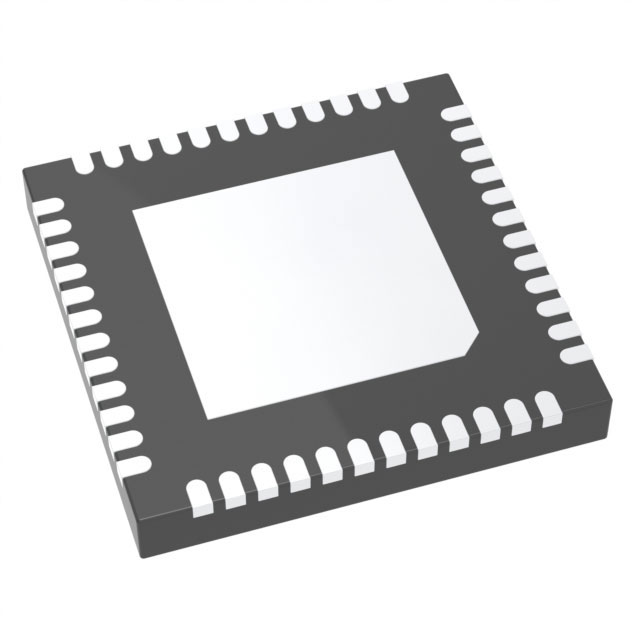

| Package / Case | 48-VFQFN Exposed Pad |
| Power - Output | 20 dBm |
| Protocol | Z-Wave® |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -110 dBm |
| Serial Interfaces | ADC, I2C, GPIO, UART, IrDA, SPI, I2S |
| Supplier Device Package | 48-QFN (6x6) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.8 V |
| Voltage - Supply [Min] | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.00 | |
| 10 | $ 6.07 | |||
| 25 | $ 5.75 | |||
| 100 | $ 5.30 | |||
| 250 | $ 5.04 | |||
| 903 | $ 4.70 | |||
| 1806 | $ 4.53 | |||
Description
General part information
EFR32ZG23B020 Series
IC RF TxRx + MCU General ISM < 1GHz Z-Wave® 863MHz ~ 870MHz, 902MHz ~ 928MHz 48-VFQFN Exposed Pad
