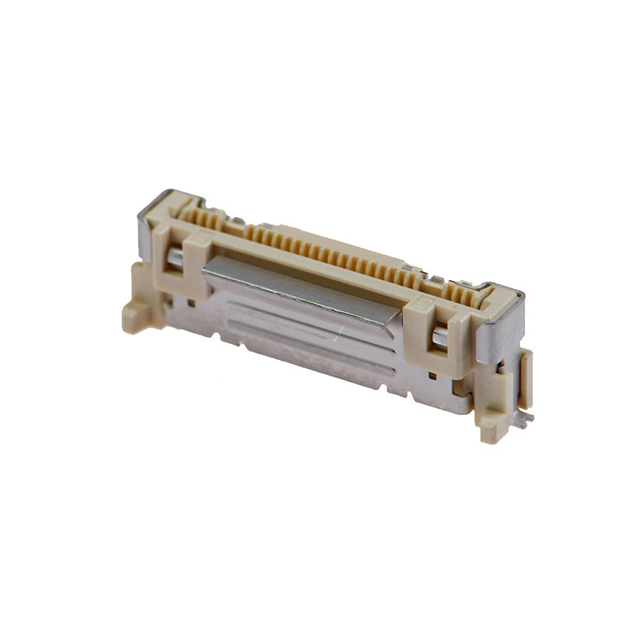

IMSA-11600S-30B-GFN4

Active

IRISO USA Inc.

CONN FFC VERT 30POS 0.5MM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMSA-11600S-30B-GFN4

Active

IRISO USA Inc.

CONN FFC VERT 30POS 0.5MM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IMSA-11600S-30B-GFN4	IMSA-116 Series

Cable End Type	Notched	Notched
Connector/Contact Type	Contacts, Vertical - 1 Sided	Contacts, Vertical - 1 Sided
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	0.5 A	0.5 A
Features	Solder Retention	Solder Retention
FFC, FCB Thickness	0.3 mm	0.3 mm
Flat Flex Type	FPC, FFC	FPC, FFC
Height Above Board	6 mm	6 mm
Height Above Board	0.236 in	0.236 in
Housing Color	Natural	Natural
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	30	10 - 60
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination	Solder	Solder
Voltage Rating	50 V	50 V

IMSA-116 Series

CONN FFC VERT 35POS 0.5MM SMD

Part	Contact Material	Housing Material	Housing Color	Features	Mounting Type	Termination	Contact Finish	Connector/Contact Type	FFC, FCB Thickness	Cable End Type	Height Above Board	Height Above Board	Voltage Rating	Material Flammability Rating	Number of Positions	Pitch [x]	Pitch [x]	Current Rating (Amps)	Flat Flex Type
IRISO USA Inc. IMSA-11600S-35B-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	35	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-45A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	45	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-15D-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	15	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-55A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	55 positions	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-30B-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	30	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-20A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	20	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-40A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	40	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-20B-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	20	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-35A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	35	0.5 mm	0.02 in	0.5 A	FFC, FPC
IRISO USA Inc. IMSA-11600S-60A-GFN4	Copper Alloy	Liquid Crystal Polymer (LCP)	Natural	Solder Retention	Surface Mount	Solder	Gold	Contacts, Vertical - 1 Sided	0.3 mm	Notched	6 mm	0.236 in	50 V	UL94 V-0	60	0.5 mm	0.02 in	0.5 A	FFC, FPC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.53
		10	$ 2.20
		25	$ 2.11
		50	$ 2.06
		100	$ 1.97
		250	$ 1.78
		500	$ 1.64
	Tape & Reel (TR)	1000	$ 1.18
		2000	$ 1.16

Description

General part information

IMSA-116 Series

30 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
