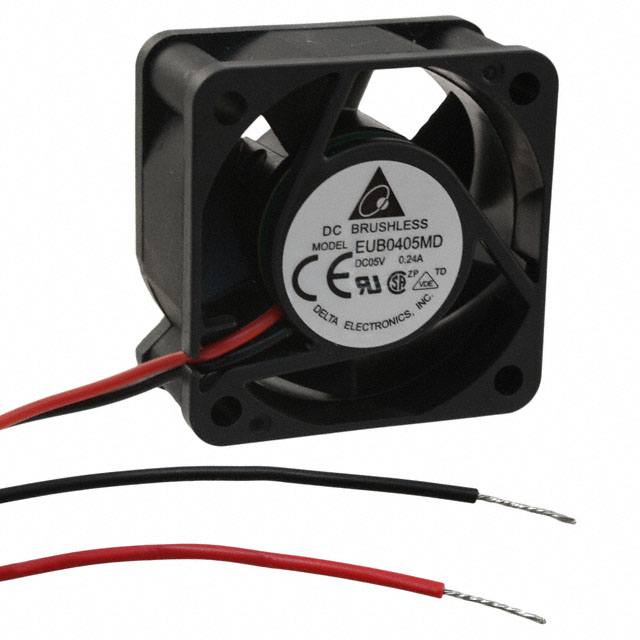

EUB0405MD
ObsoleteDelta Electronics
FAN AXIAL 40X20MM 5VDC WIRE
EUB0405MD
ObsoleteDelta Electronics
FAN AXIAL 40X20MM 5VDC WIRE
Description
General part information
EUB0405 Series
Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Superflo 7.2 CFM (0.202m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | EUB0405MD |
|---|---|
| Air Flow | 7.2 CFM |
| Approval Agency | CSA, UL, CE, VDE |
| Bearing Type | Superflo |
| Current Rating | 150 mA |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Lifetime | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 24 dB |
| Operating Temperature (Max) | 140 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 750 mW |
| RPM | 6300 RPM |
| Size / Dimension Height | 40 mm |
| Size / Dimension Length | 40 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.218 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 5 VAC |
| Voltage Range (Max) | 5.5 VDC |
| Voltage Range (Min) | 4.5 VDC |
| Weight | 0.073 lb |
| Width | 20 mm |
