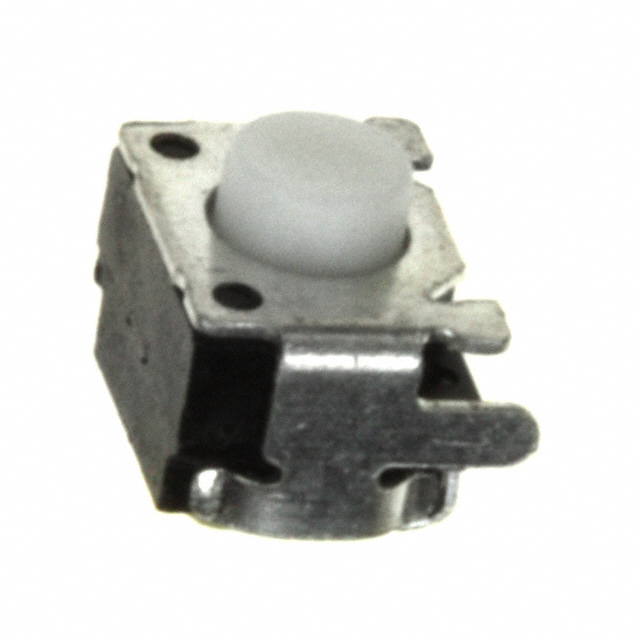

TL3340AF160QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL3340AF160QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL3340AF160QG |
|---|---|
| Actuator Length, Right Angle | 3.4 mm |
| Actuator Material | Polyphthalamide (PPA) |
| Actuator Orientation | Side Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Outline [x] | 4 mm |
| Outline [y] | 3.3 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.54 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.50 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.54 | ||
| 10 | $ 0.52 | |||
| 25 | $ 0.50 | |||
| 100 | $ 0.43 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 2000 | $ 0.33 | ||
| 4000 | $ 0.31 | |||
| 6000 | $ 0.29 | |||
| 10000 | $ 0.27 | |||
Description
General part information
TL3340 Series
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Documents
Technical documentation and resources
No documents available
