7413-1-5
Obsolete3M (TC)

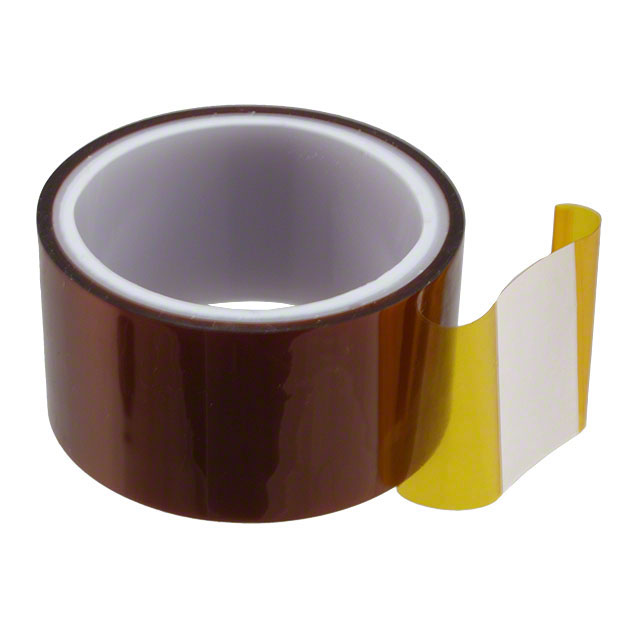

TAPE MASKING AMBER 1"X5YDS
Deep-Dive with AI
Search across all available documentation for this part.
7413-1-5
Obsolete3M (TC)
TAPE MASKING AMBER 1"X5YDS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7413-1-5 |
|---|---|
| Adhesive | Silicone Thermosetting |
| Backing, Carrier | Polyimide |
| Color | Amber |
| Length | 4.6 m |
| Length | 15 ft |
| Length | 5 yd |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Tape Type | Masking |
| Temperature Range [Max] | 260 °C |
| Temperature Range [Min] | -73 °C, -100 °F |
| Thickness | 0.061 mm |
| Thickness | 0.0024 in |
| Thickness | 2.4 mils |
| Thickness - Adhesive | 0.036 mm |
| Thickness - Adhesive | 1.4 mils |
| Thickness - Adhesive | 0.0014 " |
| Thickness - Backing, Carrier | 1 mils |
| Thickness - Backing, Carrier | 0.025 mm |
| Thickness - Backing, Carrier | 0.001 " |
| Usage | Masking, High Temperature |
| Width [x] | 25.4 mm |
| Width [x] | 1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
7413 Series
Masking Tape Silicone Thermosetting Adhesive Amber 1.00" (25.40mm) X 15' (4.6m) 5 yds
Documents
Technical documentation and resources
No documents available
