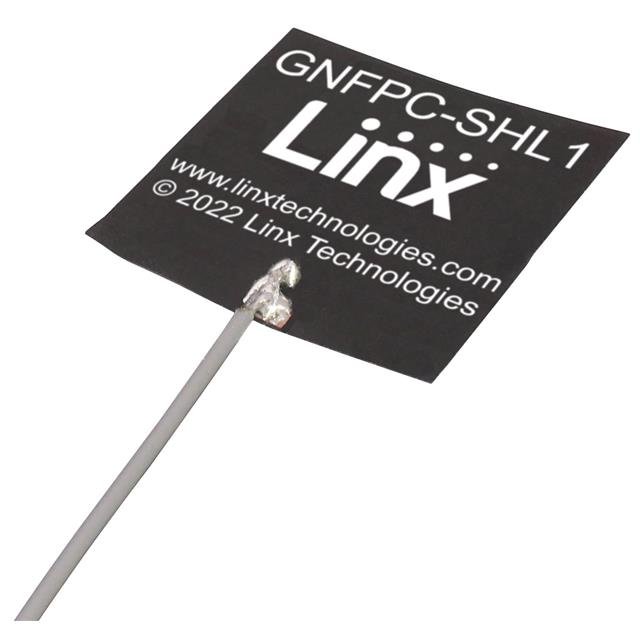

ANT-GNFPC-SHL1100UF
ActiveTE Connectivity Linx
RF ANT GNSS FPC L1 100MM UFL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-GNFPC-SHL1100UF
ActiveTE Connectivity Linx
RF ANT GNSS FPC L1 100MM UFL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GNFPC-SHL1100UF |
|---|---|
| Antenna Type | Flat Patch |
| Applications | GLONASS, GNSS, GPS, Beidou, Galileo |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 1.575 GHz, 1.561 GHz, 1.601 GHz, 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Gain | 3.2 dBi, 2.6 dBi |
| Height (Max) | 0.1 mm |
| Height (Max) [Max] | 0.004 in |
| Mounting Type | Adhesive |
| Number of Bands | 4 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | Navigation |
| Termination | U.FL, MHF1 |
| VSWR | 1.6, 1.9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.37 | |
| 10 | $ 3.92 | |||
| 25 | $ 3.71 | |||
| 100 | $ 3.21 | |||
| 250 | $ 3.05 | |||
| 500 | $ 2.90 | |||
Description
General part information
ANT-GNFPC-SHL1100 Series
1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz Beidou, Galileo, GLONASS, GNSS, GPS Flat Patch RF Antenna 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi MHF1, U.FL Adhesive
Documents
Technical documentation and resources
