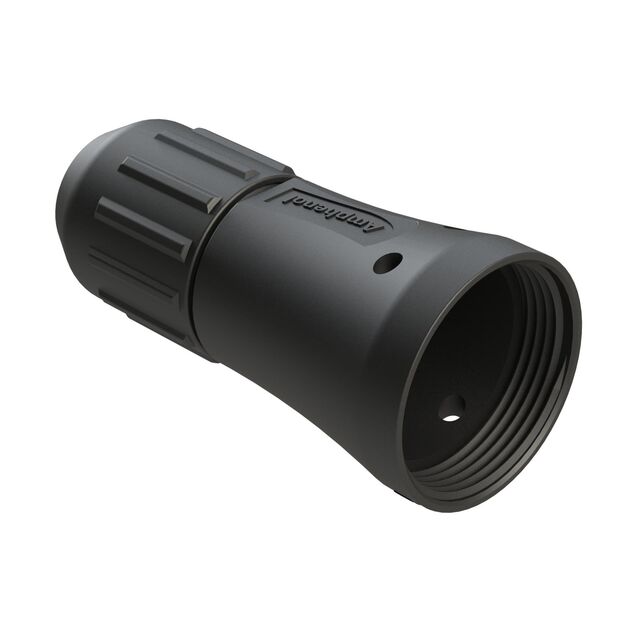

Specification	AHDPBS-24L015-005

Cable Exit Angle	180 °
Cable Opening (Max)	0.709 in
Cable Opening (Min)	0.571 in
Color	Black
Diameter - Outside	1.512 in
Features	Strain Relief
For Use With/Related Products	AHDP Series Connector with WTA Modification
Material	Thermoplastic
Primary Material	Plastic
Shell Size - Insert	24
Shell Size - Insert	24
Shielding	Unshielded
Thread Diameter	35 mm
Thread Pitch	1.75 mm
Type	Backshell

STA Series

Part	For Use With/Related Products	Type	Shell Size - Insert	Shell Size - Insert	Thread Pitch	Thread Diameter	Cable Exit Angle	Diameter - Outside	Shielding	Cable Opening (Min)	Cable Opening (Max)	Features	Color	Material	Primary Material	Housing Color	Contact Size	Fastening Type	Mounting Feature	Connector Type	Orientation	Contact Type	Mounting Type	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
McGill Microwave Systems AHDPBS-24L015-005	AHDP Series Connector with WTA Modification	Backshell	24	24	1.75 mm	35 mm	180 °	1.512 in	Unshielded	0.571 in	0.709 in	Strain Relief	Black	Thermoplastic	Plastic
McGill Microwave Systems AHDP04-24-31ST-STA		For Female Sockets							Unshielded						Plastic	Black	16 S	Bayonet Lock	Bulkhead Front Side Nut	Receptacle Housing	Keyed	Crimp	Panel Mount	31	Dust Tight Water Resistant Waterproof	IP68 IP69K	Thermoplastic	31	24
