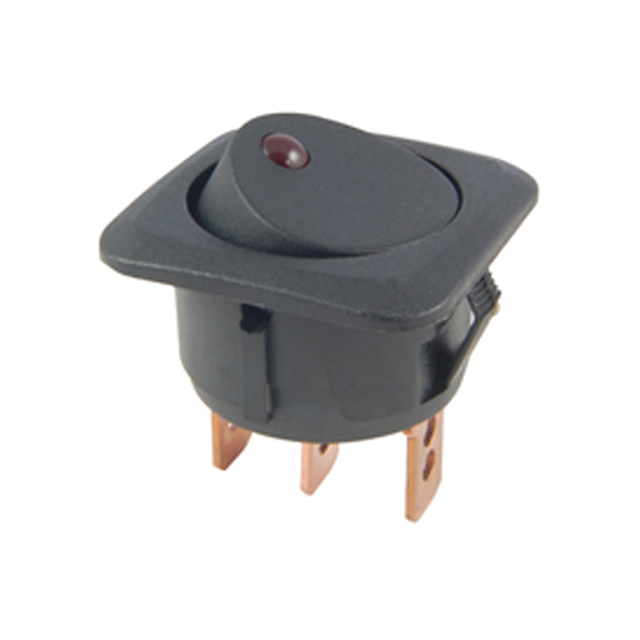

SWITCH ROCKER SPST 25A 12V

Deep-Dive with AI

Search across all available documentation for this part.

54-734

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 25A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

- Series

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	54-734	- Series

Actuator Length	-	9.4 - 50.8 mm
Actuator Marking	No Marking	No Marking
Actuator Material	-	Brass, Nickel Plated
Actuator Type	Round - Illuminated	Standard Round, Paddle, Concave (Curved) - Illuminated, Round - Illuminated, Round, Concave (Curved)
Approval Agency	-	CSA, UR
Bushing Thread	-	15/32-32
Circuit	SPST	SPST, DPDT, SPDT, DPST, SPST-NO
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	25 A	3 - 25 A
Electrical Life	-	25000 - 50000 Cycles
Features	-	Sealed
Illumination	-	Non-Illuminated, Illuminated
Illumination Type, Color	Red, LED	Red, LED, Amber/Green, Green/Red
Illumination Voltage (Nominal)	12 VDC	12 VDC
Ingress Protection	-	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In, Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C	65 - 85 °C
Operating Temperature [Min]	-25 °C	-40 - 0 °C
Panel Cutout Dimensions	-	12.7 mm
Switch Function	On-Off	On-Off, On-Off-On, Mom-Off-Mom, On-Off-Mom, On-Mom, On-On, Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm), Solder Lug, Screw Terminal
Voltage Rating - AC	-	120 - 250 V
Voltage Rating - DC	12 V	12 - 30 V

- Series

SWITCH TOGGLE SPST 15A 125V

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Features	Current Rating (Amps)	Electrical Life	Actuator Type	Circuit	Illumination	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Switch Function	Voltage Rating - AC	Bushing Thread	Voltage Rating - DC	Actuator Marking	Illumination Type, Color	Mounting Type	Illumination Voltage (Nominal)	Color - Actuator/Cap
NTE Electronics, Inc 54-458	Quick Connect - 0.250" (6.3mm)	65.6 °C	-17.8 °C	Brass, Nickel Plated	Sealed	15 A	50000 Cycles	Standard Round	SPST	Non-Illuminated	12.7 mm	17.44 mm	On-Off	125 V	15/32-32
NTE Electronics, Inc 54-137	Solder Lug	85 °C	0 °C			20 A		Standard Round	SPST	Non-Illuminated		16.5 mm	On-Off	250 V
NTE Electronics, Inc 54-732	Quick Connect - 0.250" (6.3mm)	65 °C	0 °C			20 A		Paddle	DPDT	Non-Illuminated		35 mm	On-Off-On			12 V
NTE Electronics, Inc 54-711	Quick Connect - 0.250" (6.3mm)	85 °C	-25 °C					Concave (Curved) - Illuminated	SPST				On-Off			12 V	No Marking	LED, Red	Panel Mount, Snap-In	12 VDC	Black
NTE Electronics, Inc 54-731	Quick Connect - 0.250" (6.3mm)	65 °C	0 °C			20 A		Paddle	DPDT	Non-Illuminated		35 mm	Mom-Off-Mom			12 V
NTE Electronics, Inc 54-730	Solder Lug					10 A		Paddle	SPDT	Non-Illuminated		23.5 mm	On-Off-On	125 V
NTE Electronics, Inc 54-659	Quick Connect - 0.250" (6.3mm)	65.6 °C	-17.8 °C	Brass, Nickel Plated	Sealed	15 A	50000 Cycles	Standard Round	SPDT	Non-Illuminated	12.7 mm	17.44 mm	Mom-Off-Mom	125 V	15/32-32
NTE Electronics, Inc 54-713	Quick Connect - 0.250" (6.3mm)	85 °C	-20 C			20 A		Standard Round	SPST	Non-Illuminated		19.2 mm	On-Off			12 V
NTE Electronics, Inc 54-725	Solder Lug					6 A		Paddle	SPDT	Non-Illuminated		11.8 mm	On-Off-On	125 V
NTE Electronics, Inc 54-734	Quick Connect - 0.250" (6.3mm)	85 °C	-25 °C			25 A		Round - Illuminated	SPST				On-Off			12 V	No Marking	LED, Red	Panel Mount, Snap-In	12 VDC	Black
