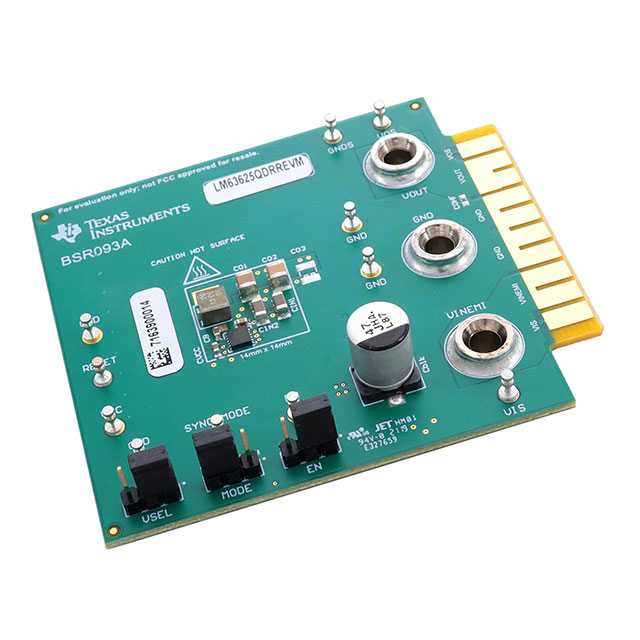

LM63625QDRREVM
ActiveTexas Instruments
EVAL BOARD FOR LM63625-Q1
LM63625QDRREVM
ActiveTexas Instruments
EVAL BOARD FOR LM63625-Q1
Description
General part information
LM63625QDRREVM
LM63625-Q1 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | LM63625QDRREVM |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 2.5 A |
| Frequency - Switching | 2.1 MHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | LM63625-Q1 |
| Voltage - Input (Maximum) | 36 V |
| Voltage - Input (Minimum) | 3.5 V |
| Voltage - Output | 5 VDC, 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
