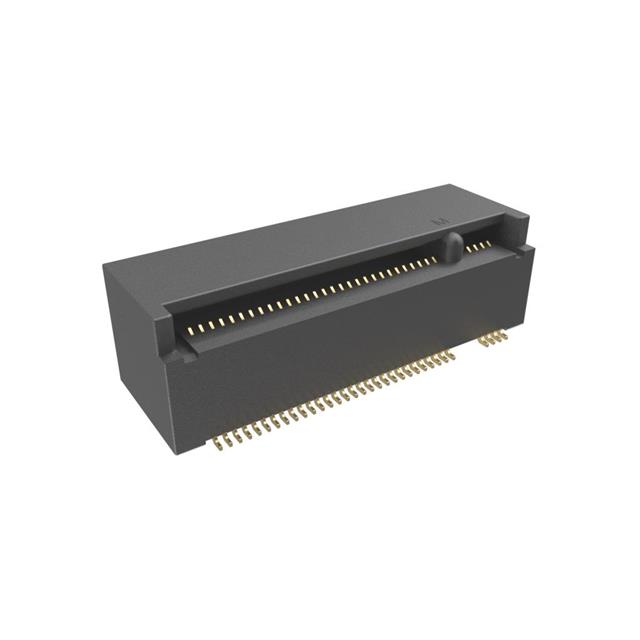

10128798-005RLF
ActiveAmphenol ICC (FCI)
CONN M.2 FMALE 75POS 0.020 GOLD
Deep-Dive with AI
Search across all available documentation for this part.
10128798-005RLF
ActiveAmphenol ICC (FCI)
CONN M.2 FMALE 75POS 0.020 GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10128798-005RLF |
|---|---|
| Card Type | M.2 (NGFF) Mini Card |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 75 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 900 | $ 1.73 | |
| 1800 | $ 1.62 | |||
| 2700 | $ 1.61 | |||
Description
General part information
10128798 Series
75 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
