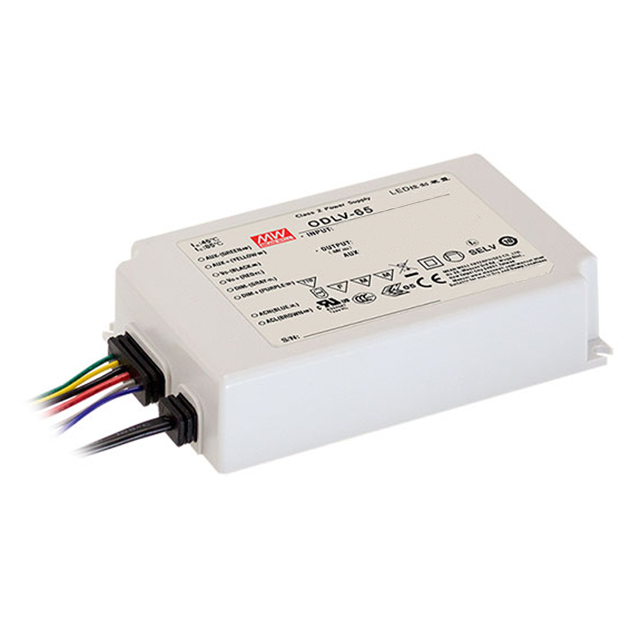

ODLV-65A-24

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 2.4A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 2.4A

Technical Specifications

Parameters and characteristics for this part

Part	Topology	Dimming	Approval Agency	Current - Output (Max) [Max]	Voltage - Output	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Termination Style	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Number of Outputs	Voltage - Isolation	Type	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)
MEAN WELL USA Inc. ODLV-65A-24	AC DC Converter	Analog PWM	CB CCC CE cURus ENEC	2.4 A	24 V	180 VAC	295 VAC	Wire Leads	Chassis Mount	OCP SCP	85 °C	-20 C	IP67	1	3750 V	Constant Voltage	87 %	3.03 in	77 mm	1.12 in	121 mm	28.5 mm	4.76 "
MEAN WELL USA Inc. ODLV-65-12	AC DC Converter	Analog PWM	CB CCC CE cURus ENEC	4.2 A	12 V	180 VAC	295 VAC	Wire Leads	Chassis Mount	OCP SCP	85 °C	-20 C	IP67	1	3750 V	Constant Voltage	85 %	3.03 in	77 mm	1.12 in	121 mm	28.5 mm	4.76 "	50 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.98

General part information

2.4A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
