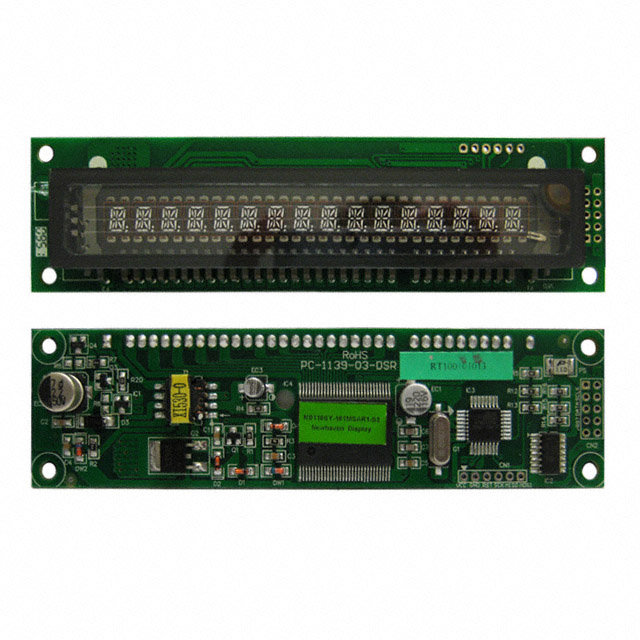

M0116SY-161MSAR1-S2
ObsoleteNewhaven Display Intl
MODULE VFD CHAR 1X16 5.00MM
M0116SY-161MSAR1-S2
ObsoleteNewhaven Display Intl
MODULE VFD CHAR 1X16 5.00MM
Description
General part information
M0116SY Series
Vacuum Fluorescent Display (VFD) 16 x 1 Character 4.5V ~ 5.5V Serial 125.00mm x 33.50mm x 7.93mm
Technical Specifications
Parameters and characteristics for this part
| Specification | M0116SY-161MSAR1-S2 |
|---|---|
| Character Height | 5 mm |
| Character Width | 3 mm |
| Controller Type | ATMEGA, OKI-L9272 |
| Display Columns | 16 |
| Display Rows | 1 |
| Display Type | Character |
| Interface | Serial |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Height | 7.93 mm |
| Outline Length | 125 mm |
| Outline Width | 33.5 mm |
| Viewing Area Length | 110.2 mm |
| Viewing Area Width | 20.5 mm |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
