Part	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish	Mounting Type	Contact Material	Number of Positions	Height Above Board	Washable	Pitch	Pitch Type	Actuator Level	Actuator Type	Voltage Rating	Termination Style	Current Rating	Circuit	Length	Body Material	Electrical Life (Cycles)	Mechanical Life (Cycles)	Features
TE Connectivity AMP Connectors 435640-4	-55 °C	105 °C	Gold	Through Hole	Copper Alloy	6	0.34 in	No	0.1 in	Full	Raised	Rocker	5 V	PC Pin	60 mA	SPST	0.68 in	Glass Filled PET Polyester	2000 Cycles	2000 Cycles

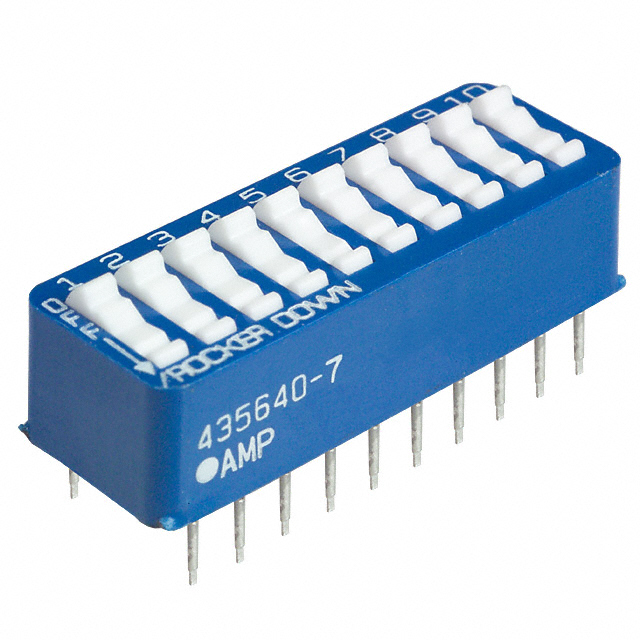

TE Connectivity AMP Connectors 435640-7				Through Hole		10		No			Raised	Rocker				SPST
TE Connectivity AMP Connectors 435640-3	-55 °C	105 °C	Gold	Through Hole	Copper Alloy	5	0.34 in	No	0.1 in	Full	Raised	Rocker	5 V	PC Pin	60 mA	SPST	0.58 in	Glass Filled PET Polyester	2000 Cycles	2000 Cycles
TE Connectivity AMP Connectors 5-435640-0				Through Hole		8		Yes			Raised	Rocker				SPST
TE Connectivity AMP Connectors 5-435640-3	-55 °C	105 °C	Gold	Through Hole	Copper Alloy	8	0.34 in	Yes	0.1 in	Full	Raised	Rocker	5 V	PC Pin	60 mA	SPST	0.88 in	Glass Filled PET Polyester	2000 Cycles	2000 Cycles	Sealed
TE Connectivity AMP Connectors 3-435640-8	-55 °C	105 °C	Gold	Through Hole	Copper Alloy	7	0.34 in	Yes	0.1 in	Full	Raised	Rocker	5 V	PC Pin	60 mA	SPST	0.78 in	Glass Filled PET Polyester	2000 Cycles	2000 Cycles	Sealed
TE Connectivity AMP Connectors 5-435640-1	-55 °C	105 °C	Gold	Through Hole	Copper Alloy	10	0.34 in	Yes	0.1 in	Full	Raised	Rocker	5 V	PC Pin	60 mA	SPST	1.08 in	Glass Filled PET Polyester	2000 Cycles	2000 Cycles	Sealed
TE Connectivity AMP Connectors 435640-5				Through Hole		8		No			Raised	Rocker				SPST
TE Connectivity AMP Connectors 3-435640-6	-55 °C	105 °C	Gold	Through Hole	Copper Alloy	5	0.34 in	Yes	0.1 in	Full	Raised	Rocker	5 V	PC Pin	60 mA	SPST	0.58 in	Glass Filled PET Polyester	2000 Cycles	2000 Cycles	Sealed
TE Connectivity AMP Connectors 435640-6	-55 °C	105 °C	Gold	Through Hole	Copper Alloy	9	0.34 in	No	0.1 in	Full	Raised	Rocker	5 V	PC Pin	60 mA	SPST	0.98 in	Glass Filled PET Polyester	2000 Cycles	2000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

435640-5 | Datasheet
