Specification	644969-1

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.4 in
Contact Length - Post	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	0.425 in
Insulation Material	Glass Filled, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	5
Number of Positions Loaded	3
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.65 in
Pitch - Mating	0.156 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V

644969 Series

Part	Contact Length - Mating	Contact Type	Contact Finish - Post	Shrouding	Fastening Type	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Contact Length - Post	Overall Contact Length	Insulation Height	Connector Type	Contact Material	Termination	Style	Number of Positions	Mounting Type	Insulation Color	Number of Rows	Current Rating	Insulation Material	Pitch - Mating	Voltage Rating	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Applications
TE Connectivity AMP Connectors 644969-1	0.4 in	Male Pin	Tin	Shrouded - 1 Wall	Friction Lock	Square	-55 °C	105 °C	0.125 in	0.65 in	0.425 in	Header	Copper Alloy	Solder	Board Cable/Wire	5	Through Hole	Natural	1	Varies by Wire Gauge	Glass Filled Thermoplastic	0.156 in	600 V	Tin	3	UL94 V-0	General Purpose Industrial
TE Connectivity AMP Connectors 644969-2	0.4 in	Male Pin	Tin	Shrouded - 1 Wall	Friction Lock	Square	-55 °C	105 °C	0.125 in	0.65 in	0.425 in	Header	Copper Alloy	Solder	Board Cable/Wire	5	Through Hole	Natural	1	Varies by Wire Gauge	Glass Filled Thermoplastic	0.156 in	600 V	Tin	4	UL94 V-0	General Purpose Industrial

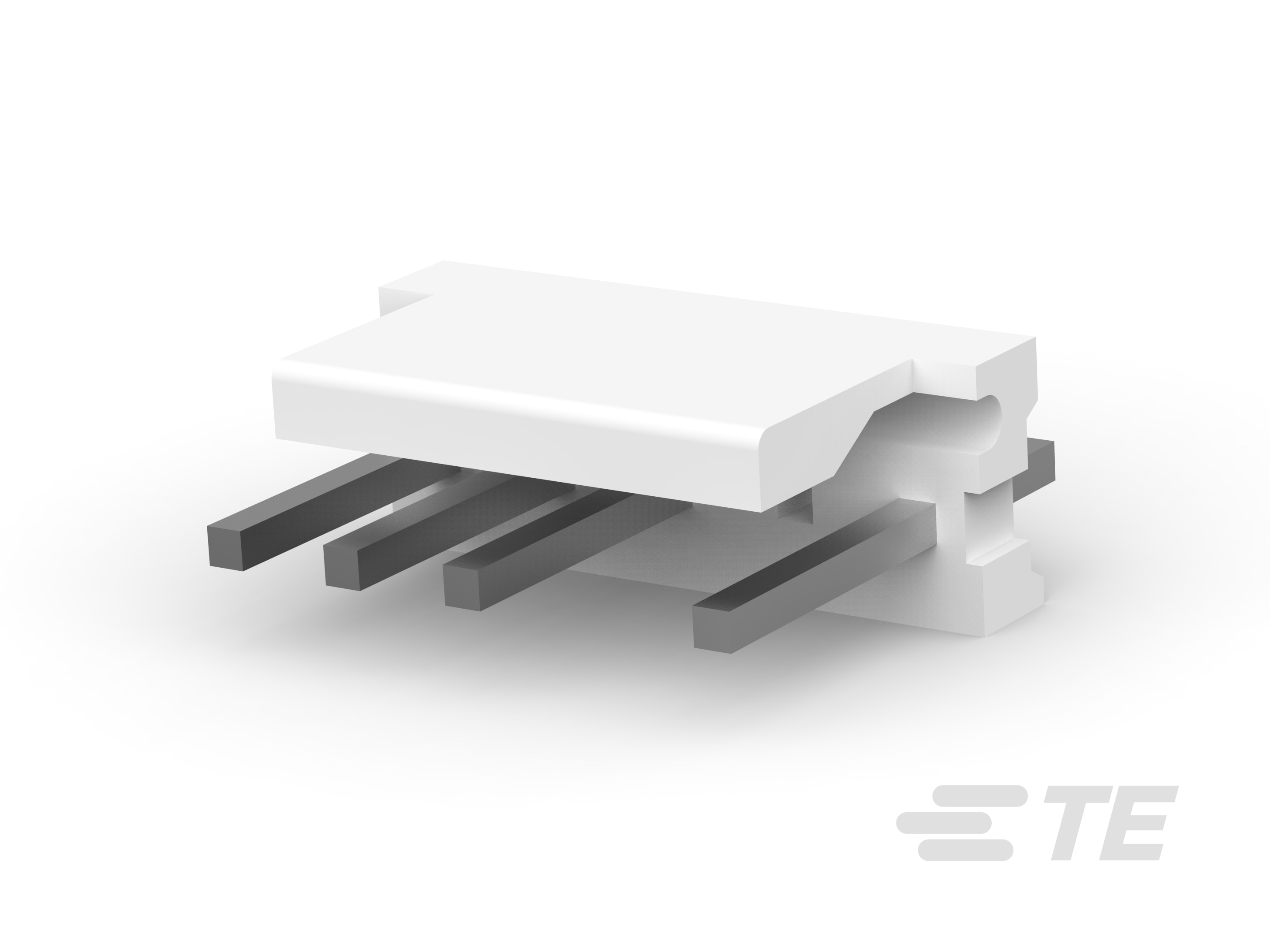

TE Connectivity AMP Connectors 644969-3	0.4 in	Male Pin	Tin	Shrouded - 1 Wall	Friction Lock	Square	-55 °C	105 °C	0.125 in	0.65 in	0.425 in	Header	Copper Alloy	Solder	Board Cable/Wire	5	Through Hole	Natural	1	Varies by Wire Gauge	Glass Filled Thermoplastic	0.156 in	600 V	Tin	4	UL94 V-0	General Purpose Industrial
