DCA5-20PC-1-DC1-RL-C
ActiveMurata Power Solutions Inc.

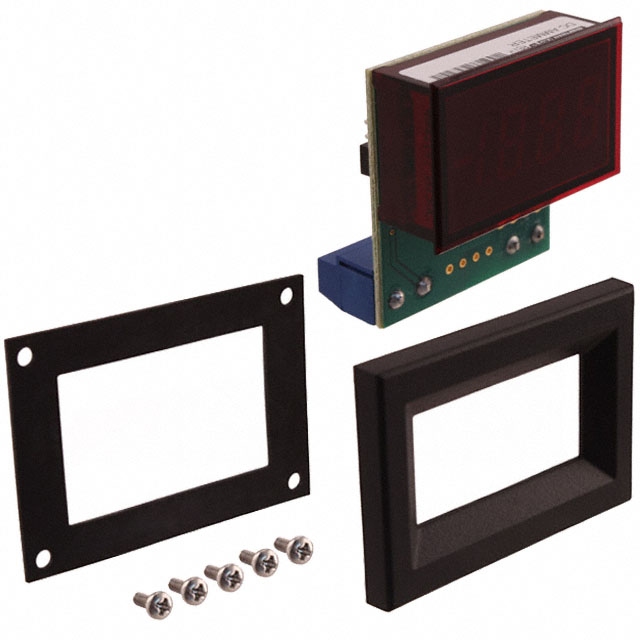

DPM, DC AMMETER, 20A, 5-40VDC, EXT SHUNT
Deep-Dive with AI
Search across all available documentation for this part.
DCA5-20PC-1-DC1-RL-C
ActiveMurata Power Solutions Inc.
DPM, DC AMMETER, 20A, 5-40VDC, EXT SHUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DCA5-20PC-1-DC1-RL-C | DCA5-20PC Series |
|---|---|---|
| Display Characters - Height | - | 9.4 mm |
| Display Characters - Height | - | 0.37 in |
| Display Type | - | LED - Red Characters, LED - Green Characters |
| Measuring Range | - | 0 A |
| Measuring Range | - | 500 - 1500 A |
| Measuring Type | - | Current |
| Mounting Type | - | Panel Mount - Bezel |
| null | - | |
| Number of Characters Per Row | - | 3.5 |
| Operating Temperature | - | 60 °C |
| Operating Temperature | - | 0 °C |
| Panel Cutout Dimensions | - | 33.93 mm |
| Panel Cutout Dimensions | - | 21.29 mm |
| Termination Style | - | Screw Terminal |
| Type | - | Ammeter |
| Voltage - Supply | - | 36 - 40 VDC |
| Voltage - Supply | - | 5 - 8 V |
| Weight | - | 0.037 - 0.038 lb |
| Weight | - | 16.78 - 17.24 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DCA5-20PC Series
DPM, DC AMMETER, 20A, 5-40VDC, EXT SHUNT
| Part | Termination Style | Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Number of Characters Per Row | Display Characters - Height | Display Characters - Height | Voltage - Supply [Max] | Voltage - Supply [Min] | Weight | Weight | Measuring Type | Measuring Range [Min] | Measuring Range [Max] | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DCA5-20PC-1-DC1-RL-C | Screw Terminal | Ammeter | 60 °C | 0 °C | Panel Mount - Bezel | 33.93 mm | 21.29 mm | 3.5 | 9.4 mm | 0.37 in | 40 VDC | 5 V | 0.037 lb | 16.78 g | Current | 0 A | 1000 A | LED - Red Characters |
Murata Power Solutions Inc. DCA5-20PC-3-DC1-PGL-C | Screw Terminal | Ammeter | 60 °C | 0 °C | Panel Mount - Bezel | 33.93 mm | 21.29 mm | 3.5 | 9.4 mm | 0.37 in | 40 VDC | 5 V | 0.038 lb | 17.24 g | Current | 0 A | 600 A | LED - Green Characters |
Murata Power Solutions Inc. DCA5-20PC-7-DC4-GS-C | Screw Terminal | Ammeter | 60 °C | 0 °C | Panel Mount - Bezel | 33.93 mm | 21.29 mm | 3.5 | 9.4 mm | 0.37 in | 36 V | 8 V | 0.038 lb | 17.24 g | Current | 0 A | 500 A | LED - Green Characters |
Murata Power Solutions Inc. DCA5-20PC-10-DC1-BL-C | ||||||||||||||||||
Murata Power Solutions Inc. DCA5-20PC-1-DC1-RL-C | ||||||||||||||||||
Murata Power Solutions Inc. DCA5-20PC-7-DC4-RL-C | ||||||||||||||||||
Murata Power Solutions Inc. DCA5-20PC-3-DC1-RL-C | Screw Terminal | Ammeter | 60 °C | 0 °C | Panel Mount - Bezel | 33.93 mm | 21.29 mm | 3.5 | 9.4 mm | 0.37 in | 40 VDC | 5 V | 0.038 lb | 17.24 g | Current | 0 A | 600 A | LED - Red Characters |
Murata Power Solutions Inc. DCA5-20PC-7-DC1-PGL-C | Screw Terminal | Ammeter | 60 °C | 0 °C | Panel Mount - Bezel | 33.93 mm | 21.29 mm | 3.5 | 9.4 mm | 0.37 in | 40 VDC | 5 V | 0.038 lb | 17.24 g | Current | 0 A | 500 A | LED - Green Characters |
Murata Power Solutions Inc. DCA5-20PC-5-DC1-RL-C | Screw Terminal | Ammeter | 60 °C | 0 °C | Panel Mount - Bezel | 33.93 mm | 21.29 mm | 3.5 | 9.4 mm | 0.37 in | 40 VDC | 5 V | 0.038 lb | 17.24 g | Current | 0 A | 1500 A | LED - Red Characters |
Murata Power Solutions Inc. DCA5-20PC-8-DC4-GS-C |
