SM13B-SRSS-TB
ActiveJST Sales America Inc.

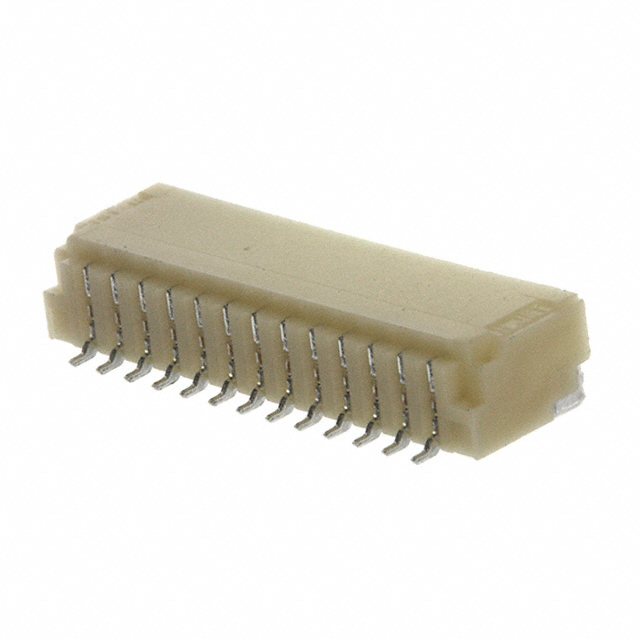

CONN HEADER SMD R/A 13POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
SM13B-SRSS-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 13POS 1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM13B-SRSS-TB |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.114 " |
| Insulation Height | 2.9 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 13 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.27 | |
| 10 | $ 1.07 | |||
| 100 | $ 0.96 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.27 | ||
| 10 | $ 1.07 | |||
| 100 | $ 0.96 | |||
| 500 | $ 0.79 | |||
| 1000 | $ 0.70 | |||
| Tape & Reel (TR) | 3000 | $ 0.63 | ||
| 6000 | $ 0.61 | |||
| 9000 | $ 0.58 | |||
| 15000 | $ 0.57 | |||
Description
General part information
SM13B-SR Series
Connector Header Surface Mount, Right Angle 13 position 0.039" (1.00mm)
Documents
Technical documentation and resources
