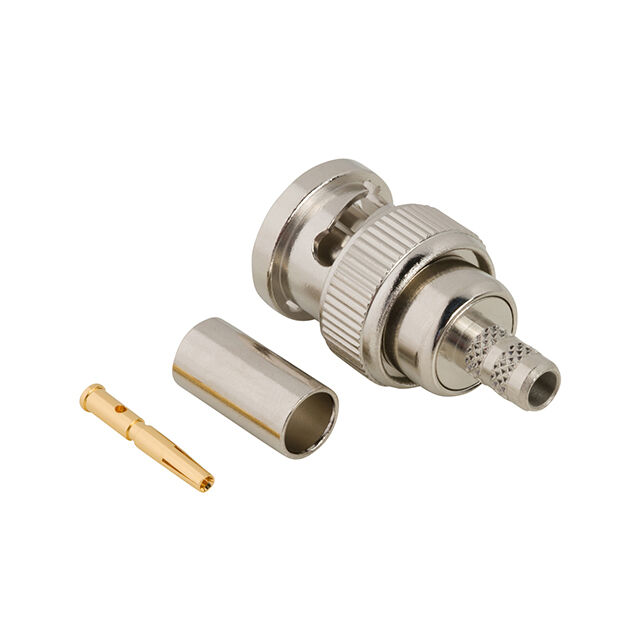

031-6036

Active

AMPHENOL RF

CONN RP-BNC PLUG STR 50OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-6036

Active

AMPHENOL RF

CONN RP-BNC PLUG STR 50OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6036	031-60 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass, Zinc Die Cast
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58	Belden 9258, LMR-240, LMR-400, Belden 9913, Belden 9914, 58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Phosphor Bronze	Brass, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	RP-BNC	BNC, RP-TNC, RP-BNC, TNC
Connector Type	Plug, Female Socket	Male Pin, Plug, Female Socket, Jack
Contact Termination	Crimp	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) Acetal, Polypropylene (PP)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 - 500 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Ferrule, 1 Contact, 1 Connector, 1 End Cap
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle, Through Hole, Panel Mount
Number of Ports	1	1 - 2
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp, Solder
Voltage Rating	500 V	500 V

031-60 Series

CONN BNC PLUG STR 50 OHM CRIMP

Part	Contact Termination	Number of Ports	Frequency - Max [Max]	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Insertion Loss	Mounting Type	Dielectric Material	Connector Style	Fastening Type	Housing Color	Voltage Rating	Center Contact Plating	Shield Termination	Body Material	Cable Group	Center Contact Material	Connector Type	Body Finish	Includes	Mounting Feature
AMPHENOL RF 031-6006	Crimp	1	4 GHz	50 Ohms	-65 ░C	165 °C	500	0.2 dB	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	BNC	Bayonet Lock	Silver	500 V	Gold	Crimp	Brass	Belden 9258, LMR-240	Brass	Male Pin, Plug	Nickel
AMPHENOL RF 031-6033	Crimp	1	11 GHz	50 Ohms	-65 ░C	165 °C	500		Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	RP-TNC		Silver	500 V	Gold	Crimp	Brass	Belden 9913, Belden 9914, LMR-400	Phosphor Bronze	Female Socket, Plug	Nickel	1 Connector, 1 Contact, 1 Ferrule
AMPHENOL RF 031-6036	Crimp	1	4 GHz	50 Ohms	-65 ░C	165 °C	500	0.2 dB	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	RP-BNC	Bayonet Lock	Silver	500 V	Gold	Crimp	Brass	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Phosphor Bronze	Female Socket, Plug	Nickel	1 Connector, 1 Contact, 1 Ferrule
AMPHENOL RF 031-6035	Crimp	1	4 GHz	50 Ohms	-65 ░C	165 °C	500	0.2 dB	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	RP-BNC	Bayonet Lock	Silver	500 V	Gold	Crimp	Brass	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	Brass	Jack, Male Pin	Nickel	1 Connector, 1 Contact, 1 Ferrule
AMPHENOL RF 031-6000-RFX	Solder	1	11 GHz	50 Ohms	-65 ░C	165 °C	500		Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	TNC		Silver	500 V	Gold	Crimp	Brass	Belden 9258, LMR-240	Brass	Male Pin, Plug	Nickel	1 Connector, 1 Contact, 1 Ferrule
AMPHENOL RF 031-6004-RFX	Solder	1	4 GHz	50 Ohms	-65 ░C	165 °C	500	0.2 dB	Free Hanging (In-Line), Right Angle	Polyoxymethylene (POM) Acetal	BNC	Bayonet Lock	Silver	500 V	Gold	Crimp	Brass	Belden 9913, Belden 9914, LMR-400	Brass	Male Pin, Plug	Nickel	1 Connector, 1 End Cap, 1 Ferrule
AMPHENOL RF 031-6051	Solder	2	500 MHz	75 Ohms			500	0.2 dB	Panel Mount, Right Angle, Through Hole	Polypropylene (PP)	BNC	Bayonet Lock	Silver	500 V	Gold	Solder	Zinc Die Cast		Phosphor Bronze	Female Socket, Jack	Nickel		Bulkhead - Front Side Nut
AMPHENOL RF 031-6002-RFX	Solder	1	11 GHz	50 Ohms			500		Free Hanging (In-Line), Right Angle	Polytetrafluoroethylene (PTFE)	TNC		Silver	500 V	Gold	Crimp	Brass	Belden 9913, Belden 9914, LMR-400	Brass	Male Pin, Plug	Nickel	1 Connector, 1 End Cap, 1 Ferrule

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

031-60 Series

RP-BNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
