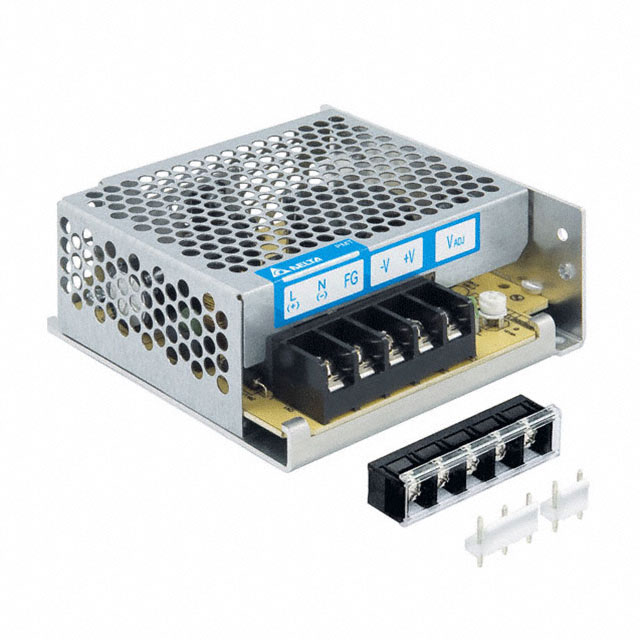

PMT-15V50W1AA
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), 13.5V TO 16.5V, ITE, 1 OUTPUTS, 51 W, 15 V, 3.4 A
Deep-Dive with AI
Search across all available documentation for this part.

PMT-15V50W1AA
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), 13.5V TO 16.5V, ITE, 1 OUTPUTS, 51 W, 15 V, 3.4 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMT-15V50W1AA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | TUV, cURus, CB, CCC, CE |
| Current - Output 1 | 3.4 A |
| Efficiency | 85.5 % |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 3.86 in |
| Size / Dimension [x] | 98 mm |
| Size / Dimension [y] | 3.86 in |
| Size / Dimension [y] | 98 mm |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PMT-15 Series
PMT-15V50W1AA is a PMT series of panel mount power supply. It can withstand shock and vibration requirements. In addition to features like overvoltage and overload protections, this panel mount power supply is unlike many other brands in the same price level. This is designed for cost competitive markets without compromising the quality of the components and product specifications. The product has an expected life time of 10 years and this versatile product has three different connector options and can also be converted into L Frame (PML) type of power supplies to satisfy different application needs. It includes overvoltage, overcurrent, overload, short circuit protection. Application includes buildings, machine, process, factory automation, test and measurements, LED lighting.
