Specification	DMA10P1600PZ-TRL

Capacitance	4 pF
Current - Average Rectified (Io)	10 A
Current - Reverse Leakage	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	175 °C
Operating Temperature - Junction (Min)	-55 °C

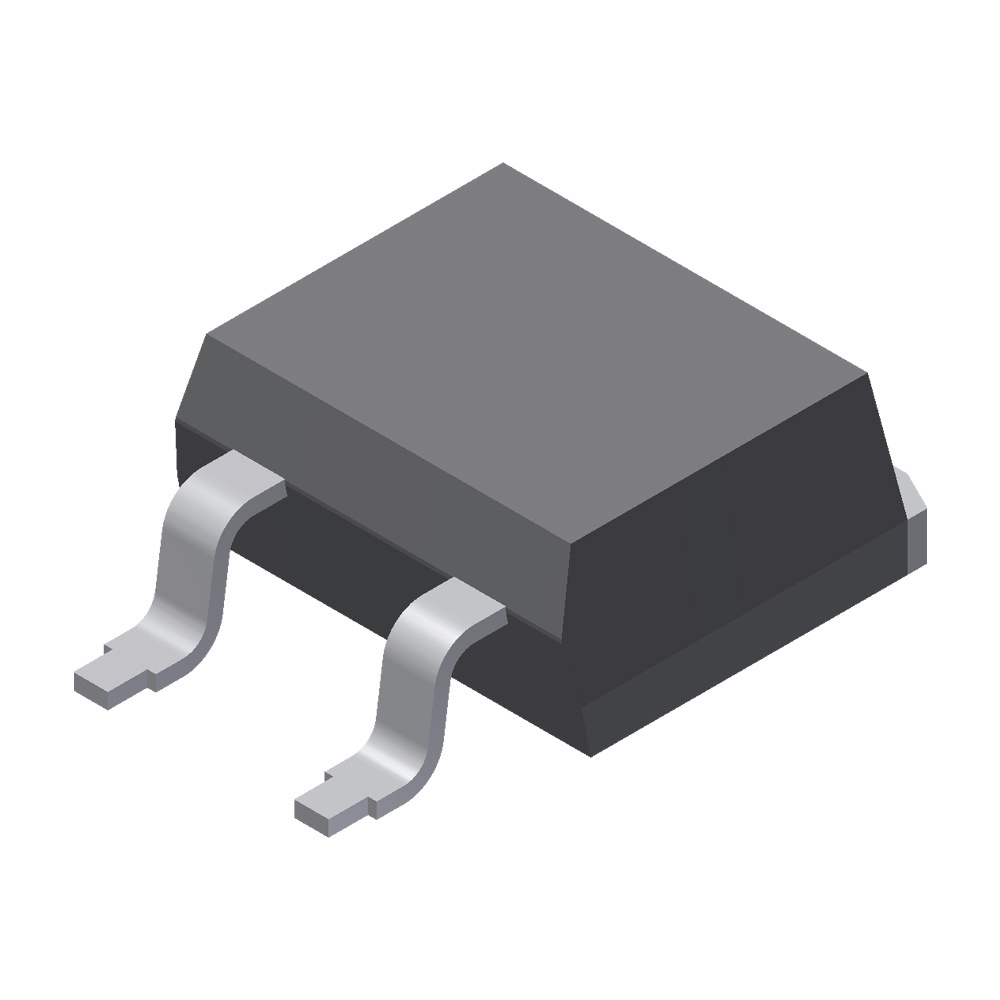

Package / Case	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB
Package Name	TO-263HV
Speed	Standard Recovery
Speed - Fast Recovery (Minimum)	200 mA, 500 ns
Speed - Recovery Current	200 mA, 200 mA
Speed - Recovery Time	500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	1600 V
Voltage - Forward (Vf) (Max)	1.26 V

DMA10P1600PZ Series

Power Diode Discretes-Rectifier TO-263D2

Part	Technology	Package Name	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Current - Reverse Leakage	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max)	Capacitance	Package / Case	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Speed - Recovery Time	Voltage - Forward (Vf) (Max)	Mounting Type
LITTELFUSE DMA10P1600PZ-TRL	Standard	TO-263HV	175 °C	-55 °C	10 µA	10 A	1600 V	4 pF	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	1.26 V	Surface Mount
LITTELFUSE DMA10P1600PZ-TUB	Standard	TO-263HV	175 °C	-55 °C	10 µA	10 A	1600 V	4 pF	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	1.26 V	Surface Mount
