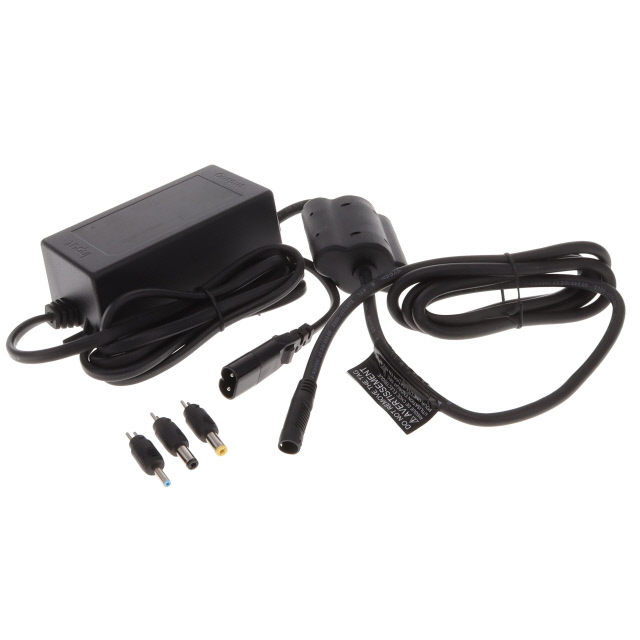

Specification	PR9KY1800T00-IMR6B

Applications	ITE (Commercial), Medical
Approval Agency	LPS, VCCI, RCM, EAC, S-Mark, CB, CE, UKRSepro, cETLus, PSE
Cord Length	59 in
Current - Output (Max)	1.8 A
Efficiency	Level VI, CoC Tier 1
Features	Waterproof, Dust Tight, IP68, Ruggedized
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	150 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-20 °C
Output Connector	2.1mm x 5.5mm, (1.3mm x 3.5mm, Barrel Plug Kit, 2.5mm x 5.5mm)
Power (Watts)	65 W
Region Utilized	International
Size / Dimension Height	1.54 in
Size / Dimension Length	4.91 in
Size / Dimension Width	2.25 in
Standard Number	60950-1, 62368-1, 60601-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	36 V

PR9KY1800 Series

Part	Standard Number	Voltage - Output	Region Utilized	Output Connector	Applications	No Load Power Consumption (Max)	Input Connector	Approval Agency	Input Type	Cord Length	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Efficiency	Current - Output (Max)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Form	Features	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length
GlobTek, Inc. PR9KY1800T00-IMR6B	60601-1 60950-1 62368-1	36 V	International	(1.3mm x 3.5mm 2.1mm x 5.5mm 2.5mm x 5.5mm) Barrel Plug Kit	ITE (Commercial) Medical	150 mW	IEC 320-C8	CB CE cETLus EAC LPS PSE RCM S-Mark UKRSepro VCCI	Cord (Sold Separately)	59 in	40 °C	-20 °C	65 W	CoC Tier 1 Level VI	1.8 A	90 V	264 V	Desktop (Class II)	Dust Tight IP68 Ruggedized Waterproof	1.54 in	2.25 in	4.91 in
