5535655-2
ActiveTE Connectivity AMP Connectors

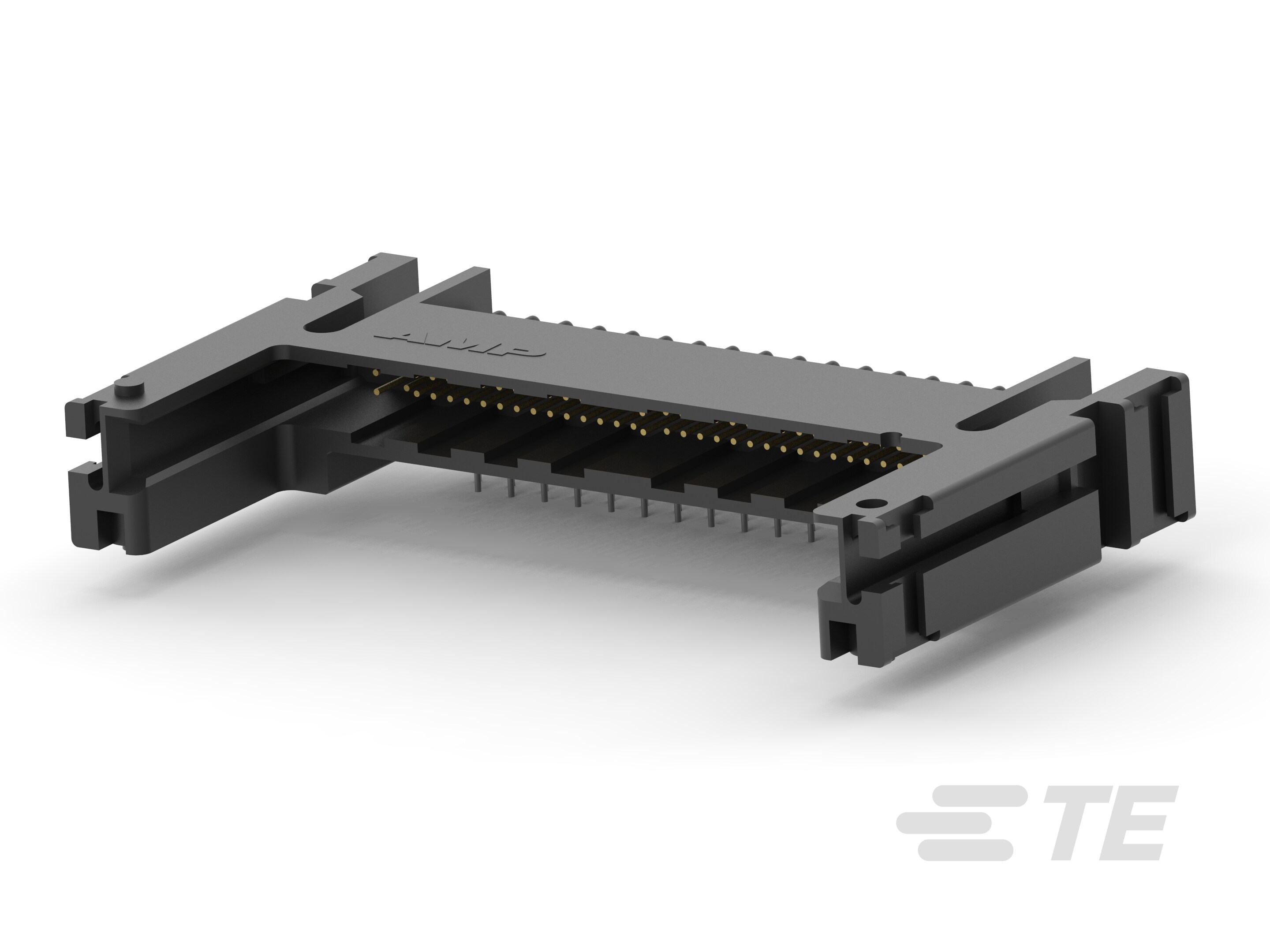

MEMORY CARD CONNECTORS PCMCIA HDR 068P T/H
5535655-2
ActiveTE Connectivity AMP Connectors
MEMORY CARD CONNECTORS PCMCIA HDR 068P T/H
Description
General part information
5535655 Series

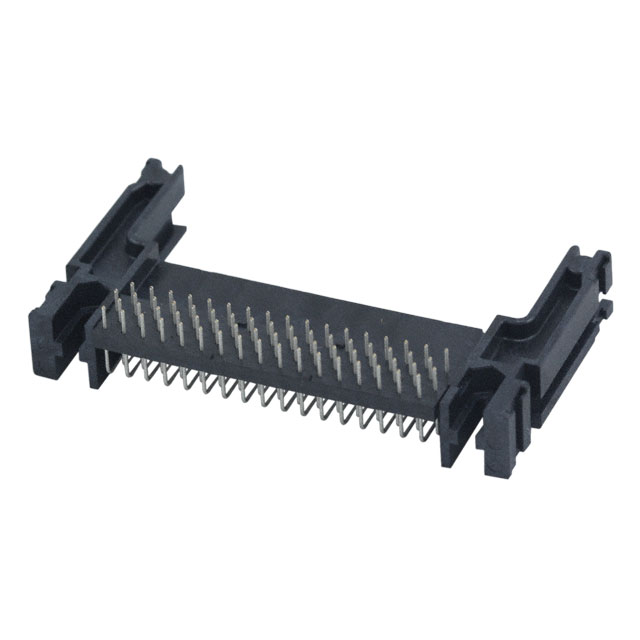

Fully Shrouded, Cable-to-Board, 68 Position, 1.27 mm [.05 in] Centerline, 4 Row, 1 Card Slots, Through Hole - Solder, Right Angle, PCMCIA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 5535655-2 |
|---|---|
| Card Type | PCMCIA |
| Connector Type | Connector |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Height Above Board | 0.378 in |
| Insertion, Removal Method | Push In, Pull Out |
| Mounting Feature | Top, Normal, Standard |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 68 |
