ZXMP10A18KQTC

Active

Diodes Inc

P-CHANNEL ENHANCEMENT MODE MOSFET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques

ZXMP10A18KQTC

Active

Diodes Inc

P-CHANNEL ENHANCEMENT MODE MOSFET

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZXMP10A18KQTC

Current - Continuous Drain (Id) @ 25°C	15 A
Drain to Source Voltage (Vdss)	100 V
Drive Voltage (Max Rds On, Min Rds On)	6 V, 10 V
FET Type	P-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	26.9 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	1055 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

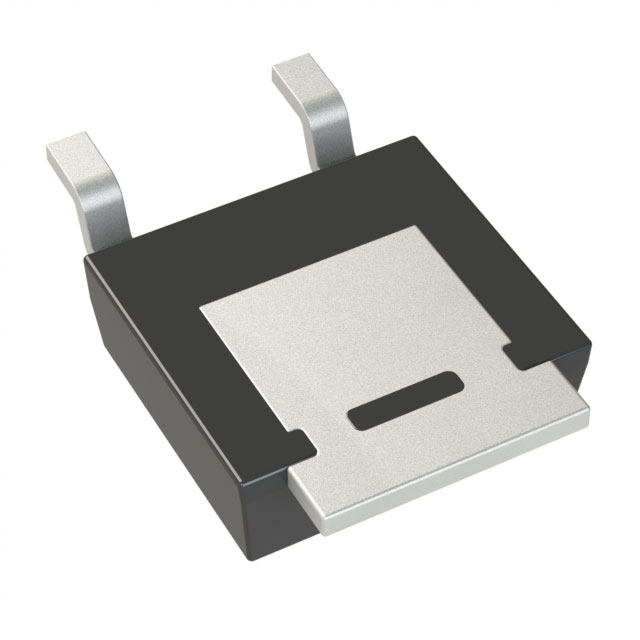

Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power Dissipation (Max)	71 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	150 mOhm
Supplier Device Package	TO-252 (DPAK)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

ZXMP10A18KQ Series

P-Channel Enhancement Mode MOSFET

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Vgs (Max)	Mounting Type	Qualification	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Package / Case	Grade	Technology	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs
Diodes Inc ZXMP10A18KQTC	26.9 nC	P-Channel	20 V	Surface Mount	AEC-Q101	100 V	15 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	Automotive	MOSFET (Metal Oxide)	TO-252 (DPAK)	1055 pF	71 W	4 V	-55 °C	150 °C	6 V 10 V	150 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.59
		5000	$ 0.57

Description

General part information

ZXMP10A18KQ Series

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: DC-DC converters, power management functions, disconnect switches, motor controls.
