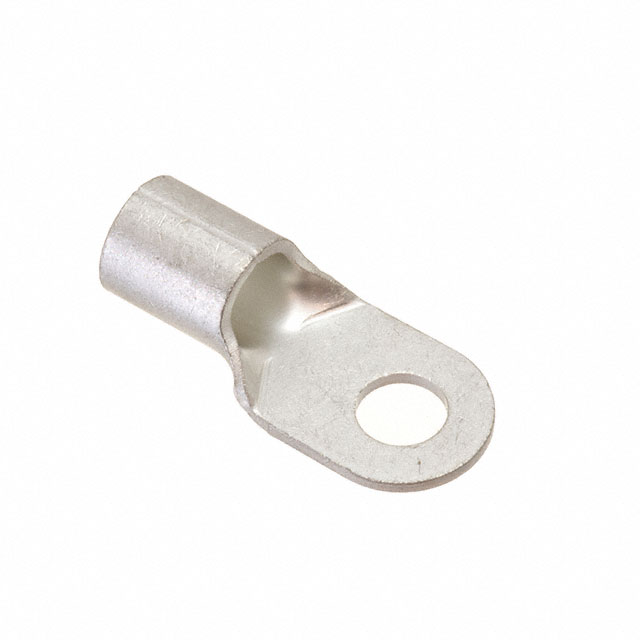

R60-10
ActiveJST Sales America Inc.
CONN RING CRIMP 1/0 AWG #3/8
Deep-Dive with AI
Search across all available documentation for this part.
R60-10
ActiveJST Sales America Inc.
CONN RING CRIMP 1/0 AWG #3/8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R60-10 |
|---|---|
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall [x] | 1.957 in |
| Length - Overall [x] | 49.7 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 3/8 Stud |
| Terminal Type | D-Shaped |
| Termination | Crimp |
| Thickness | 0.079 in |
| Thickness | 2.01 mm |
| Width - Outer Edges | 22 mm |
| Width - Outer Edges [y] | 0.866 in |
| Wire Gauge | 44 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.20 | |
| 50 | $ 0.95 | |||
| 100 | $ 0.91 | |||
| 1000 | $ 0.66 | |||
| 5000 | $ 0.58 | |||
| 10000 | $ 0.55 | |||
Description
General part information
R60 Series
Ring Terminal Connector 3/8 Stud D-Shaped 1/0 AWG Crimp
