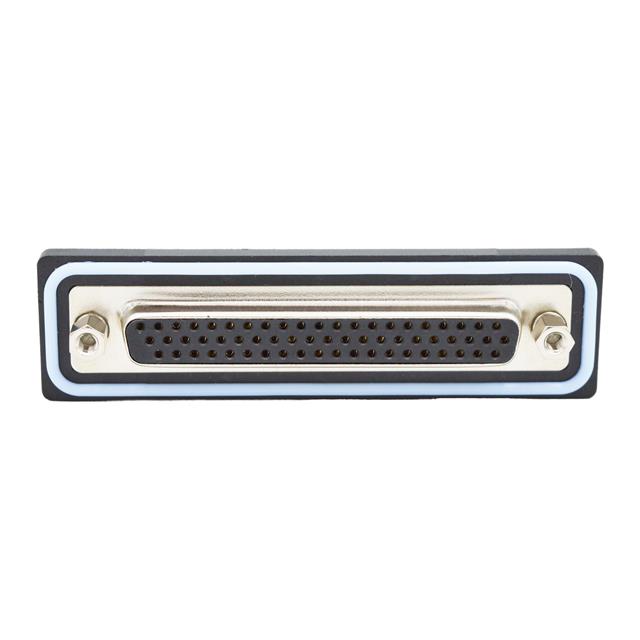

CONN D-SUB HD RCPT 62POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDF-V62-213L051

Active

NorComp Inc.

CONN D-SUB HD RCPT 62POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDF-V62-213L051	HDF-V62 Series

Color	Black	Black
Connector Style	High Density, D-Sub	High Density, D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	-	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	62	62
Number of Rows	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	4	4
Termination	Solder	Solder

HDF-V62 Series

CONN D-SUB HD RCPT 62POS PNL MNT

Part	Dielectric Material	Flange Feature	Termination	Color	Contact Material	Contact Finish Thickness	Number of Positions	Mounting Type	Shell Material, Finish	Contact Finish	Shell Size, Connector Layout	Ingress Protection	Connector Style	Contact Type	Material Flammability Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Rows	Features	Contact Finish Thickness	Contact Finish Thickness
NorComp Inc. HDF-V62-213L051	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Solder	Black	Brass	Flash	62	Panel Mount, Through Hole	Nickel Plated, Steel	Gold	4	IP67 - Dust Tight, Waterproof	D-Sub, High Density	Signal	UL94 V-0	Receptacle, Female Sockets	-25 °C	85 °C	3 A	3
NorComp Inc. HDF-V62-113L051	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Solder	Black	Brass	Flash	62	Panel Mount, Through Hole	Nickel Plated, Steel	Gold	4	IP67 - Dust Tight, Waterproof	D-Sub, High Density	Signal	UL94 V-0	Male Pins, Plug	-25 °C	85 °C	3 A	3	Board Lock, Grounding Indents
NorComp Inc. HDF-V62-113L011	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Solder	Black	Brass	Flash	62	Panel Mount, Through Hole	Nickel Plated, Steel	Gold	4	IP67 - Dust Tight, Waterproof	D-Sub, High Density	Signal	UL94 V-0	Male Pins, Plug	-25 °C	85 °C	3 A	3	Grounding Indents
NorComp Inc. HDF-V62-113L052	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Solder	Black	Brass		62	Panel Mount, Through Hole	Nickel Plated, Steel	Gold	4	IP67 - Dust Tight, Waterproof	D-Sub, High Density	Signal	UL94 V-0	Male Pins, Plug	-25 °C	85 °C	3 A	3	Board Lock, Grounding Indents	0.76 Ám	30 Áin
NorComp Inc. HDF-V62-113L012	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Solder	Black	Brass		62	Panel Mount, Through Hole	Nickel Plated, Steel	Gold	4	IP67 - Dust Tight, Waterproof	D-Sub, High Density	Signal	UL94 V-0	Male Pins, Plug	-25 °C	85 °C	3 A	3	Grounding Indents	0.76 Ám	30 Áin
NorComp Inc. HDF-V62-213L052	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Solder	Black	Brass		62	Panel Mount, Through Hole	Nickel Plated, Steel	Gold	4	IP67 - Dust Tight, Waterproof	D-Sub, High Density	Signal	UL94 V-0	Receptacle, Female Sockets	-25 °C	85 °C	3 A	3		0.76 Ám	30 Áin
NorComp Inc. HDF-V62-213L012	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Solder	Black	Brass		62	Panel Mount, Through Hole	Nickel Plated, Steel	Gold	4	IP67 - Dust Tight, Waterproof	D-Sub, High Density	Signal	UL94 V-0	Receptacle, Female Sockets	-25 °C	85 °C	3 A	3		0.76 Ám	30 Áin
NorComp Inc. HDF-V62-213L011	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Solder	Black	Brass	Flash	62	Panel Mount, Through Hole	Nickel Plated, Steel	Gold	4	IP67 - Dust Tight, Waterproof	D-Sub, High Density	Signal	UL94 V-0	Receptacle, Female Sockets	-25 °C	85 °C	3 A	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 16.33
		10	$ 12.59
		25	$ 11.46

Description

General part information

HDF-V62 Series

62 Position D-Sub, High Density Receptacle, Female Sockets Connector
