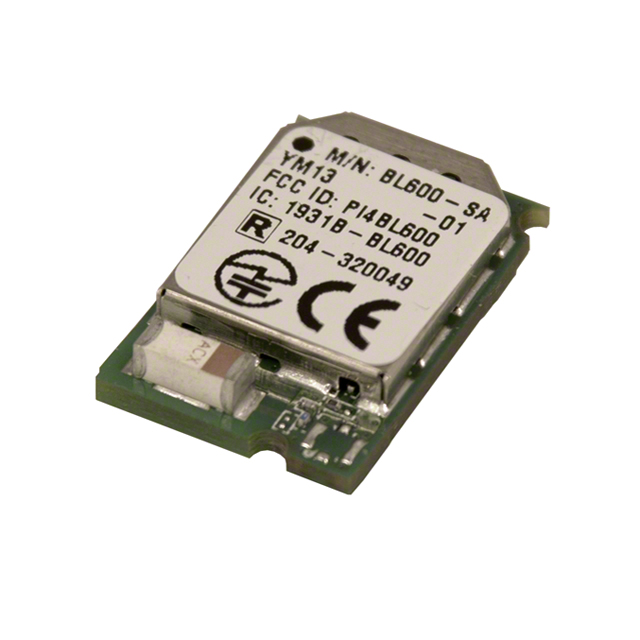

BL600-SA

Obsolete

Ezurio LLC

RF TXRX MOD BLUETOOTH CHIP SMD

Search across all available documentation for this part.

Obsolete

Ezurio LLC

RF TXRX MOD BLUETOOTH CHIP SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BL600-SA	BL600 Series

Antenna Type	Integrated, Chip	Antenna Not Included, I-PEX MHF4, Integrated, Chip
Current - Receiving	10.5 mA	10.5 mA
Current - Transmitting	10.5 mA	10.5 mA
Data Rate	1 Mbps	1 Mbps
Frequency	2.4 GHz	2.4 GHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	4 dBm	4 dBm
Protocol	Bluetooth v4.0	Bluetooth v4.0
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-91 dBm	-91 dBm
Serial Interfaces	UART, I2C, SPI	UART, I2C, SPI
Utilized IC / Part	nRF51822	nRF51822
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.8 V

BLUETOOTH V4.0 (BLE) SMART SOC 4MBPS 3V 44-PIN EACH

Part	Current - Receiving	Frequency	Sensitivity	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting	Antenna Type	Mounting Type	Serial Interfaces	RF Family/Standard	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Protocol	Power - Output
Ezurio LLC BL600-ST	10.5 mA	2.4 GHz	-91 dBm	nRF51822	85 °C	-40 °C	10.5 mA	Antenna Not Included	Surface Mount	I2C, SPI, UART	Bluetooth	Module	3.6 V	1.8 V	1 Mbps	Bluetooth v4.0	4 dBm
Ezurio LLC BL600-SC	10.5 mA	2.4 GHz	-91 dBm	nRF51822	85 °C	-40 °C	10.5 mA	Antenna Not Included, I-PEX MHF4	Surface Mount	I2C, SPI, UART	Bluetooth	Module	3.6 V	1.8 V	1 Mbps	Bluetooth v4.0	4 dBm
Ezurio LLC BL600-SA	10.5 mA	2.4 GHz	-91 dBm	nRF51822	85 °C	-40 °C	10.5 mA	Integrated, Chip	Surface Mount	I2C, SPI, UART	Bluetooth	Module	3.6 V	1.8 V	1 Mbps	Bluetooth v4.0	4 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth Bluetooth v4.0 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
