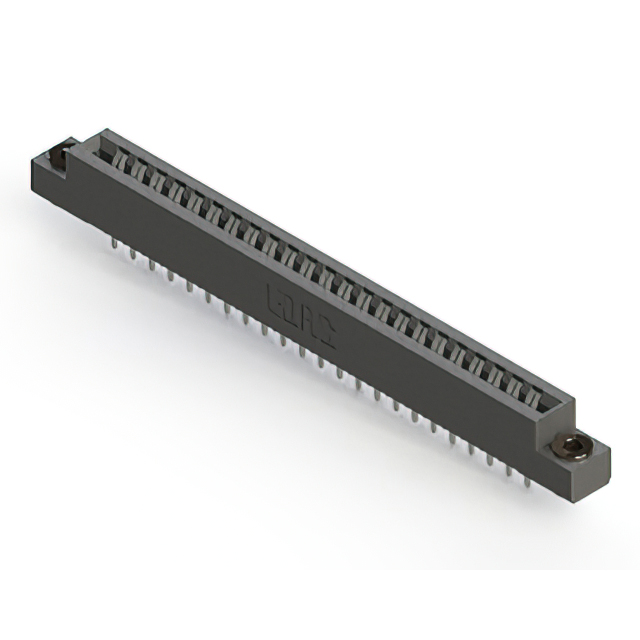

356-023-420-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-023-420-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-023-420-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 46 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
356-023 Series
| Part | Gender | Read Out | Contact Material | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Termination Rows | Number of Positions | Contact Type | Card Type | Termination | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Mounting Type | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 23 | Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Tin | ||||||
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 23 | Panel Mount Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 23 | Panel Mount Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Tin | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 23 | Panel Mount Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 23 | Panel Mount Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Tin | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | |||
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 23 | Panel Mount Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder Eyelet(s) | 0.156 in | 3.96 mm | 23 | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | |||
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 23 | Panel Mount Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | |
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 23 | Panel Mount Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Tin | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Female | Dual | Copper Alloy | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 1 | 46 | Cantilever | Non Specified - Dual Edge | Solder | 0.156 in | 3.96 mm | 23 | Panel Mount Through Hole | Polyester Thermoplastic | -40 °C | 105 ░C | Gold | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-023 Series
46 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
