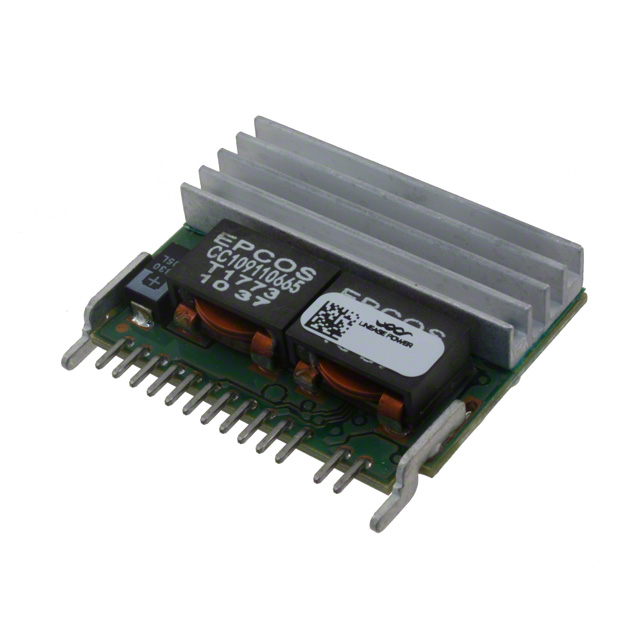

NSR040A0X43Z
ObsoleteOmniOn Power™
DC DC CONVERTER 0.6-5V 200W
NSR040A0X43Z
ObsoleteOmniOn Power™
DC DC CONVERTER 0.6-5V 200W
Description
General part information
NSR040 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5V 40A 5V - 13.8V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | NSR040A0X43Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 40 A |
| Efficiency | 93.7 % |
| Features | UVLO, OCP, Remote On/Off, OVP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | 15-SIP Module |
| Power (Watts) | 200 W |
| Size / Dimension Height | 1.1 in |
| Size / Dimension Length | 1.45 in |
| Size / Dimension Width | 0.42 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 13.8 V |
| Voltage - Input (Min) | 5 V |
| Voltage - Output 1 (Max) | 5 V |
| Voltage - Output 1 (Min) | 0.6 V |
