H7MMH-1506M

Active

Assmann WSW Components

CBL D-SUB-HHMP15H/AE15M/HHMP15H

Search across all available documentation for this part.

Active

Assmann WSW Components

CBL D-SUB-HHMP15H/AE15M/HHMP15H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

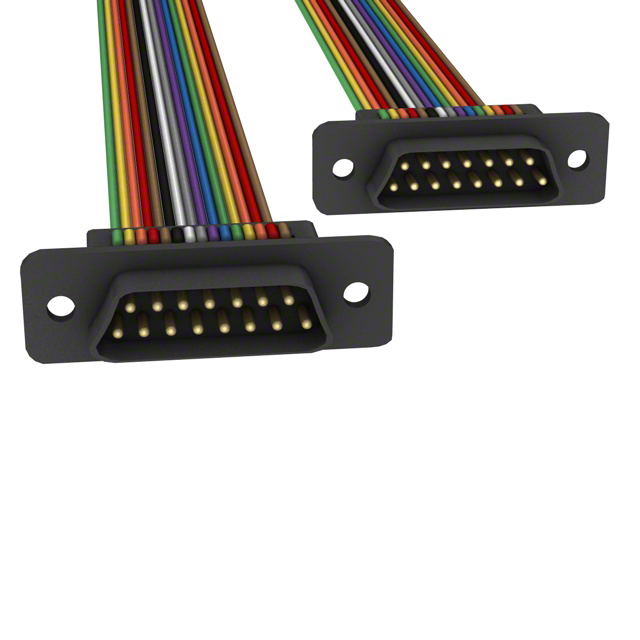

D-Sub Cable Assembly DB15 Multiple, Ribbon 6.00' (1.83m) Plug, Male Pins to Plug, Male Pins Unshielded

Technical documentation and resources

Part	1st Connector	Usage	2nd Connector	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Shielding	Contact Finish	Length	Length	Type
Assmann WSW Components H7MMH-1506M	Plug, Male Pins	Patch	Plug, Male Pins	10 Áin	0.25 Ám	Multiple, Ribbon	15	Unshielded	Gold	6 ft	1.83 m	DB15
Assmann WSW Components H7MMH-1510G	Plug, Male Pins	Patch	Plug, Male Pins	10 Áin	0.25 Ám		15	Unshielded	Gold	10 ft	3.05 m	DB15
Assmann WSW Components H7MMH-1510M	Plug, Male Pins	Patch	Plug, Male Pins	10 Áin	0.25 Ám	Multiple, Ribbon	15	Unshielded	Gold	10 ft	3.05 m	DB15
