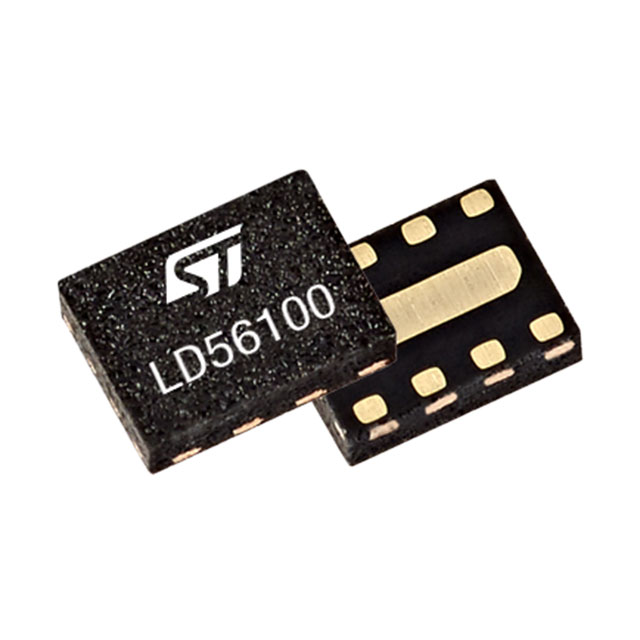

LD56100DPU28R

Active

STMicroelectronics

1 A VERY LOW DROPOUT FAST TRANSIENT ULTRA-LOW NOISE LINEAR REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

Documents +5

LD56100DPU28R

Active

STMicroelectronics

1 A VERY LOW DROPOUT FAST TRANSIENT ULTRA-LOW NOISE LINEAR REGULATOR

Deep-Dive with AI

Documents +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LD56100DPU28R

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	155 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	8-XFDFN Exposed Pad
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR [Max]	70 dB
PSRR [Min]	55 dB
Supplier Device Package	8-DFN (1.6x1.2)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	2.8 V
Voltage Dropout (Max) [Max]	0.175 V

LD56100 Series

1 A very low dropout fast transient ultra-low noise linear regulator

Part	Supplier Device Package	Output Type	Current - Output	PSRR [Max]	PSRR [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Current - Quiescent (Iq)	Control Features	Mounting Type	Number of Regulators	Voltage Dropout (Max) [Max]	Package / Case	Protection Features	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)
STMicroelectronics LD56100DPU28R	8-DFN (1.6x1.2)	1.81 mOhm	1 A	70 dB	55 dB	-40 °C	125 ¯C	Positive	155 µA	Enable	Surface Mount	1	0.175 V	8-XFDFN Exposed Pad	Over Current Over Temperature Short Circuit	5.5 V	2.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.67
		10	$ 0.59
		25	$ 0.56
		100	$ 0.45
		250	$ 0.42
		500	$ 0.36
		1000	$ 0.29
	Digi-Reel®	1	$ 0.67
		10	$ 0.59
		25	$ 0.56
		100	$ 0.45
		250	$ 0.42
		500	$ 0.36
		1000	$ 0.29
	Tape & Reel (TR)	3000	$ 0.25

Description

General part information

LD56100 Series

The LD56100 high accuracy voltage regulator provides 1 A of current from an input voltage ranging from 1.8 V to 5.5 V, with a typical dropout voltage of 120 mV.

It is available in DFN8 (1.2 x 1.6 mm) package, allowing the maximum space saving.

The device is stabilized with a ceramic capacitor on the output. The ultra-low drop voltage, low quiescent current and fast transient response, together with the internal soft-start circuit, make the LD56100 suitable for low power battery-operated applications.
