Specification	243A13880X

Connector Style	Connector Saver
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Convert From (Adapter End)	D-Sub, 44 HD, Male
Convert To (Adapter End)	D-Sub, Female, HD
Convert To (Adapter End) Pin Count	44 pins
Current Rating	3 A
Features	Filter
Finish	Tin Plated
Housing Color	Black
Includes	Jack Screws, Connector
Includes Total Count	3 pcs
Ingress Protection	IP20
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Shell Material	Steel
Voltage Rating	100 VAC

243A138 Series

Part	Current Rating	Includes Total Count	Includes	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Housing Color	Convert From (Adapter End) Type	Convert From (Adapter End) Pin Gender	Convert From (Adapter End) Pin Count	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End) Pin Count	Ingress Protection	Number of Rows	Connector Style	Contact Finish Thickness (string set options)	Contact Finish Thickness	Material Flammability Rating	Contact Finish	Finish	Shell Material	Features	Convert From (Adapter End)	Convert To (Adapter End) Type	Convert To (Adapter End) Gender
McGill Microwave Systems 243A13870X	3 A	3 pcs	Connector Jack Screws	100 VAC	85 °C	-25 °C	Black	D-Sub HD	Male	26	Free Hanging (In-Line)	D-Sub Female HD	26 pins	IP20	3	Connector Saver	Flash	Flash	UL94 V-0	Gold	Tin Plated	Steel	Filter
McGill Microwave Systems 243A13880X	3 A	3 pcs	Connector Jack Screws	100 VAC	85 °C	-25 °C	Black				Free Hanging (In-Line)	D-Sub Female HD	44 pins	IP20	3	Connector Saver	Flash	Flash	UL94 V-0	Gold	Tin Plated	Steel	Filter	44 HD D-Sub Male

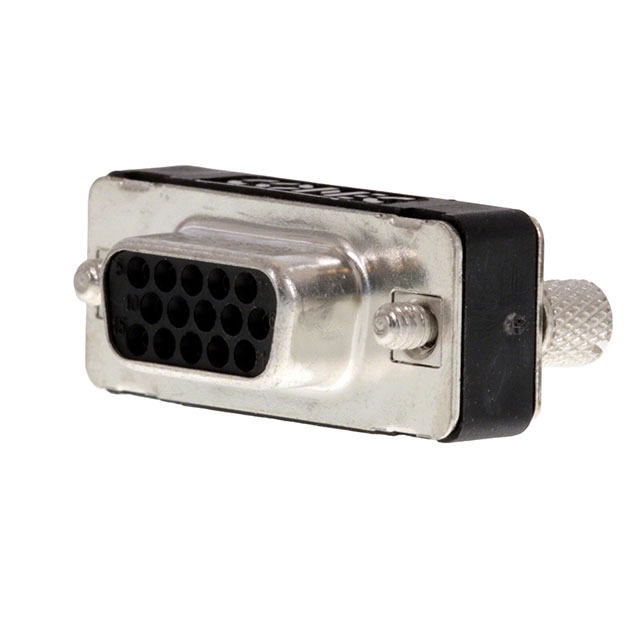

McGill Microwave Systems 243A13860X	3 A	3 pcs	Connector Jack Screws	100 VAC	85 °C	-25 °C	Black				Free Hanging (In-Line)			IP20	3	Connector Saver	Flash	Flash	UL94 V-0	Gold	Tin Plated	Steel	Filter	15 HD D-Sub Male	D-Sub	Female
