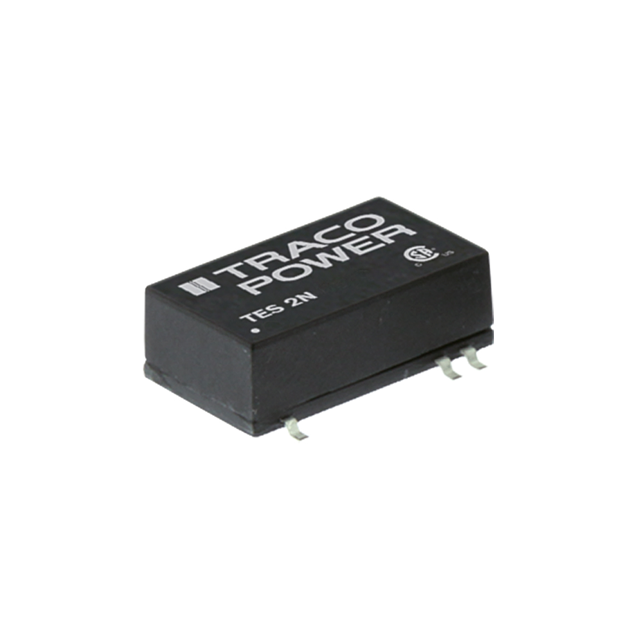

Specification	TES 2N-2423

Applications	ITE (Commercial)
Current - Output (Max)	65 mA
Efficiency	80 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	6 Leads
Package Name	16-SMD Module
Power (Watts)	2 w
Size / Dimension Height	0.36 in
Size / Dimension Length	0.94 in
Size / Dimension Width	0.54 in
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	18 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

TES 2 Series

Part	Mounting Type	Features	Current - Output (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output 2	Efficiency	Power (Watts)	Voltage - Output 1	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Isolation	Voltage - Input (Max)	Type	Number of Outputs	Voltage - Input (Min)	Applications	Package Leads	Package Name
Traco Power TES 2-2422M	Surface Mount	SCP	83 mA	80 °C	-25 °C	-12 V	74 %	2 w	12 V	0.94 in	0.54 in	0.36 in	4000 Vpk	26.4 V	Isolated Module	2	21.6 V	ITE (Commercial) Medical	6 Leads	16-SMD Module
Traco Power TES 2-1223H	Surface Mount	SCP	66 mA	85 °C	-40 °C	-15 V	80 %	2 w	15 V	0.64 in	0.37 in	0.35 in	1500 Vrns	13.2 V	Isolated Module	2	10.8 V	ITE (Commercial)	6 Leads	10-SMD Module
Traco Power TES 2N-2423	Surface Mount	SCP	65 mA	85 °C	-40 °C	-15 V	80 %	2 w	15 V	0.94 in	0.54 in	0.36 in	1500 Vrns	36 V	Isolated Module	2	18 V	ITE (Commercial)	6 Leads	16-SMD Module
Traco Power TES 2N-2411	Surface Mount	SCP	400 mA	85 °C	-40 °C		77 %	2 w	5 V	0.94 in	0.54 in	0.36 in	1500 Vrns	36 V	Isolated Module	1	18 V	ITE (Commercial)	6 Leads	16-SMD Module
Traco Power TES 2-2411H	Surface Mount	SCP	400 mA	85 °C	-40 °C		75 %	2 w	5 V	0.54 in	0.37 in	0.35 in	1500 Vrns	26.4 V	Isolated Module	1	21.6 V	ITE (Commercial)	5 Leads	8-SMD Module
Traco Power TES 2N-1210	Surface Mount	SCP	500 mA	85 °C	-40 °C		73 %	1.7 W	3.3 V	0.94 in	0.54 in	0.36 in	1500 Vrns	18 V	Isolated Module	1	9 V	ITE (Commercial)	6 Leads	16-SMD Module
Traco Power TES 2-1222H	Surface Mount	SCP	83 mA	85 °C	-40 °C	-12 V	80 %	2 w	12 V	0.64 in	0.37 in	0.35 in	1500 Vrns	13.2 V	Isolated Module	2	10.8 V	ITE (Commercial)	6 Leads	10-SMD Module
Traco Power TES 2-0511M	Surface Mount	SCP	400 mA	80 °C	-25 °C		66 %	2 w	5 V	0.94 in	0.54 in	0.36 in	4000 Vpk	5.5 V	Isolated Module	1	5 V	ITE (Commercial) Medical	6 Leads	16-SMD Module
Traco Power TES 2-2423M	Surface Mount	SCP	66 mA	80 °C	-25 °C	-15 V	75 %	2 w	15 V	0.94 in	0.54 in	0.36 in	4000 Vpk	26.4 V	Isolated Module	2	21.6 V	ITE (Commercial) Medical	6 Leads	16-SMD Module
Traco Power TES 2-2423H	Surface Mount	SCP	66 mA	85 °C	-40 °C	-15 V	79 %	2 w	15 V	0.64 in	0.37 in	0.35 in	1500 Vrns	26.4 V	Isolated Module	2	21.6 V	ITE (Commercial)	6 Leads	10-SMD Module
