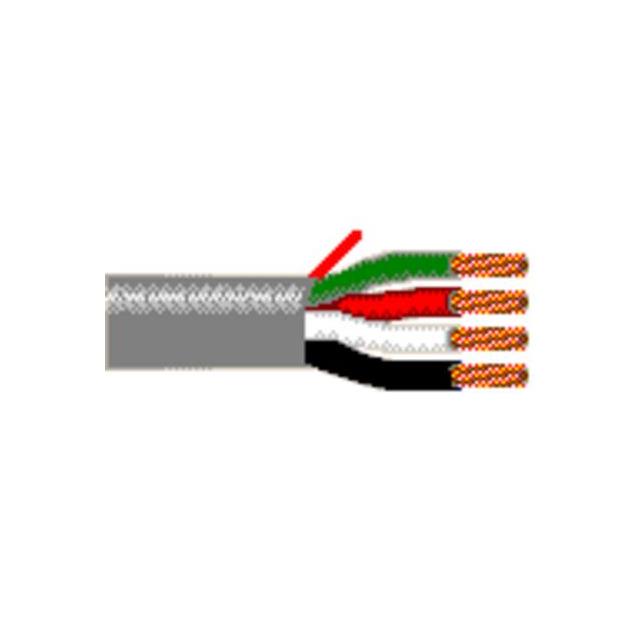

Specification	5302UP D15500

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand Count	42
Conductor Strand Gauge	34
Features	Rip Cord
Jacket (Insulation) Diameter	0.216 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Blue
Length	500 ft
Number of Conductors	4
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Usage	Commercial Audio
Voltage	300 V
Wire Gauge	18 AWG

5302UP Series

Part	Conductor Insulation	Conductor Material	Number of Conductors	Cable Type	Jacket (Insulation) Diameter	Jacket Color	Wire Gauge	Voltage	Jacket (Insulation) Thickness	Length	Conductor Strand Gauge	Conductor Strand Count	Jacket (Insulation) Material	Operating Temperature (Min)	Operating Temperature (Max)	Features	Usage
Belden Inc. 5302UP D15500	Poly-Vinyl Chloride (PVC)	Bare Copper	4	Conductor Multi	0.216 in	Blue	18 AWG	300 V	0.015 in	500 ft	34	42	Poly-Vinyl Chloride (PVC)	-20 °C	75 °C	Rip Cord	Commercial Audio
