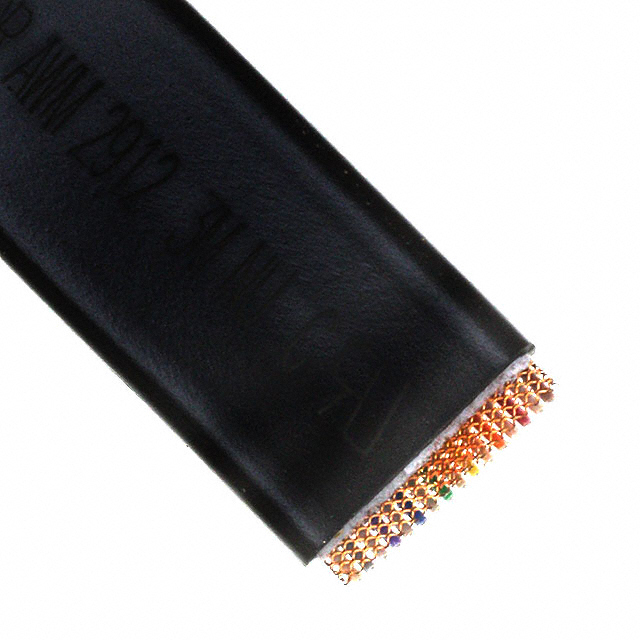

Specification	1785/16 100

Cable Type	Flat Twisted Pair, Flat Jacket
Conductor Arrangement	Twisted
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	36 AWG
Insulation Resistance	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	100 ft
Number of Conductors	16
Number of Conductors - Pair	8
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Pitch	0.05 in
Ratings	Style, 2912, UL
Ribbon Thickness	0.12 in
Ribbon Width	0.93 in
Shielding	Shielded
Voltage	150 V
Wire Gauge	28 AWG

1785 Series

Part	Conductor Material	Insulation Resistance	Cable Type	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Ratings	Ribbon Thickness	Shielding	Ribbon Width	Wire Gauge	Jacket Color	Jacket (Insulation) Material	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Length	Voltage	Conductor Strand Count	Conductor Strand Gauge	Features
3M Electronic Specialty 1785/50	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	50	Twisted	25	2912 Style UL	0.12 in	Shielded	2.63 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	200 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/40 100	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	40	Twisted	20	2912 Style UL	0.12 in	Shielded	2.13 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/64 100SF	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	64	Twisted	32	2912 Style UL	0.12 in	Shielded	3.38 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	10 ft 25 ft 100 ft	150 V	7 Strands	36 AWG	Splice Free
3M Electronic Specialty 1785/34TB	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	34	Twisted	17	2912 Style UL	0.12 in	Shielded	1.83 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/50 100SF	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	50	Twisted	25	2912 Style UL	0.12 in	Shielded	2.63 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	10 ft 25 ft 50 ft 100 ft	150 V	7 Strands	36 AWG	Splice Free
3M Electronic Specialty 1785/40 100SF	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	40	Twisted	20	2912 Style UL	0.12 in	Shielded	2.13 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	10 ft 25 ft 50 ft 100 ft	150 V	7 Strands	36 AWG	Splice Free
3M Electronic Specialty 1785/34 100	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	34	Twisted	17	2912 Style UL	0.12 in	Shielded	1.83 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/34 100SF	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	34	Twisted	17	2912 Style UL	0.12 in	Shielded	1.83 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	10 ft 25 ft 50 ft 100 ft	150 V	7 Strands	36 AWG	Splice Free
3M Electronic Specialty 1785/34BP	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	34	Twisted	17	2912 Style UL	0.12 in	Shielded	1.83 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/60 100	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	60	Twisted	30	2912 Style UL	0.12 in	Shielded	3.13 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
