1785 Series

Catalog

CBL RIBN 50COND TWIST-PAIR 200'

Part	Conductor Material	Insulation Resistance	Cable Type	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Ratings	Ribbon Thickness	Shielding	Ribbon Width	Wire Gauge	Jacket Color	Jacket (Insulation) Material	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Length	Voltage	Conductor Strand Count	Conductor Strand Gauge	Features
3M Electronic Specialty 1785/50	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	50	Twisted	25	2912 Style UL	0.12 in	Shielded	2.63 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	200 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/40 100	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	40	Twisted	20	2912 Style UL	0.12 in	Shielded	2.13 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/64 100SF	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	64	Twisted	32	2912 Style UL	0.12 in	Shielded	3.38 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	10 ft 25 ft 100 ft	150 V	7 Strands	36 AWG	Splice Free

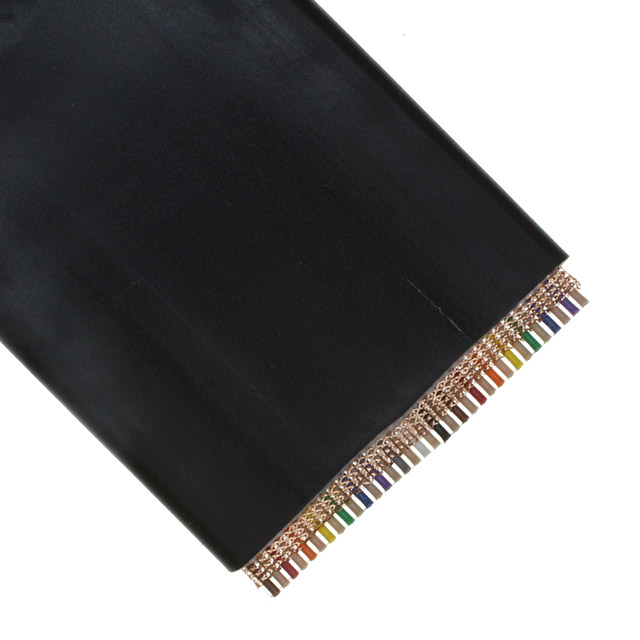

3M Electronic Specialty 1785/34TB	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	34	Twisted	17	2912 Style UL	0.12 in	Shielded	1.83 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/50 100SF	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	50	Twisted	25	2912 Style UL	0.12 in	Shielded	2.63 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	10 ft 25 ft 50 ft 100 ft	150 V	7 Strands	36 AWG	Splice Free
3M Electronic Specialty 1785/40 100SF	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	40	Twisted	20	2912 Style UL	0.12 in	Shielded	2.13 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	10 ft 25 ft 50 ft 100 ft	150 V	7 Strands	36 AWG	Splice Free
3M Electronic Specialty 1785/34 100	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	34	Twisted	17	2912 Style UL	0.12 in	Shielded	1.83 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/34 100SF	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	34	Twisted	17	2912 Style UL	0.12 in	Shielded	1.83 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	10 ft 25 ft 50 ft 100 ft	150 V	7 Strands	36 AWG	Splice Free
3M Electronic Specialty 1785/34BP	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	34	Twisted	17	2912 Style UL	0.12 in	Shielded	1.83 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
3M Electronic Specialty 1785/60 100	Copper Tinned	1 GOhms	Flat Jacket Flat Twisted Pair	60	Twisted	30	2912 Style UL	0.12 in	Shielded	3.13 in	28 AWG	Black	Poly-Vinyl Chloride (PVC)	0.05 in	-20 °C	80 °C	100 ft	150 V	7 Strands	36 AWG
