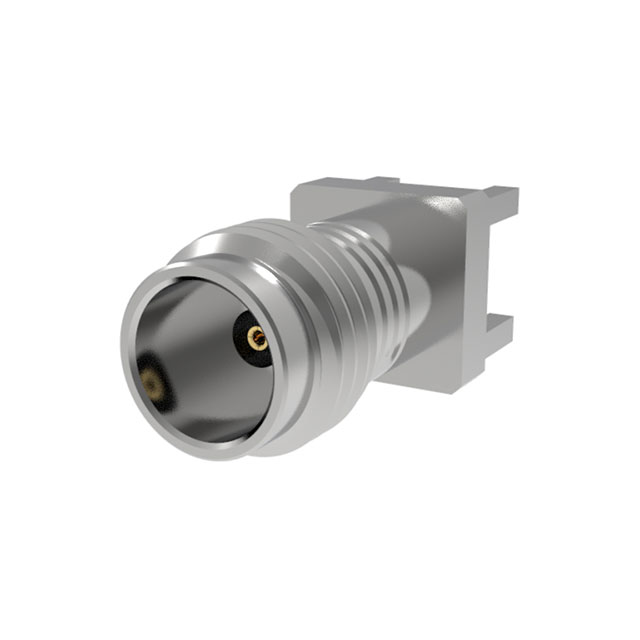

TMB-V8FS-3SM

Active

CarlisleIT

1.85(F)STR,VL,MIXED-TECH,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

1.85(F)STR,VL,MIXED-TECH,SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Through Hole Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TMB-V8FS-3SM	TMB-V8 Series

Body Finish	Gold	Nickel, Gold
Body Material	Brass	Stainless Steel, Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	1.85 mm	1.85 mm
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Compression, Solder
Features	-	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	65 GHz	65 - 67 GHz
Housing Color	Gold	Silver, Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.6 dB	0.2 - 0.6 dB
Mating Cycles	500	500
Mounting Feature	-	Flange
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -55 °C
Shield Termination	Solder	Screw, Solder
Voltage Rating	400 V	400 - 500 V

1.85MM(F) 2-H, VERT. LAUNCH PIN

Part	Number of Ports	Connector Style	Mounting Type	Frequency - Max [Max]	Shield Termination	Body Finish	Mounting Feature	Connector Type	Contact Termination	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Center Contact Material	Voltage Rating	Features	Impedance	Insertion Loss	Body Material	Mating Cycles
CarlisleIT TMB-V8F2-3LC	1	1.85 mm	Surface Mount	67 GHz	Screw	Nickel	Flange	Female Socket, Jack	Compression	Silver
CarlisleIT TMB-V8F2-3L1	1	1.85 mm	Surface Mount	65 GHz	Screw		Flange	Female Socket, Jack	Compression	Silver	85 °C	-55 °C	Gold	Beryllium Copper	500 V	Field Replaceable, For Hermetically Sealed Pin	50 Ohms	0.2 dB	Stainless Steel	500
CarlisleIT TMB-V8FS-3SM	1	1.85 mm	Through Hole	65 GHz	Solder	Gold		Female Socket, Jack	Solder	Gold	165 °C	-65 ░C	Gold	Beryllium Copper	400 V		50 Ohms	0.6 dB	Brass	500
