EBTM-4-08-2.0-S-VT-1-R
ActiveSamtec Inc.

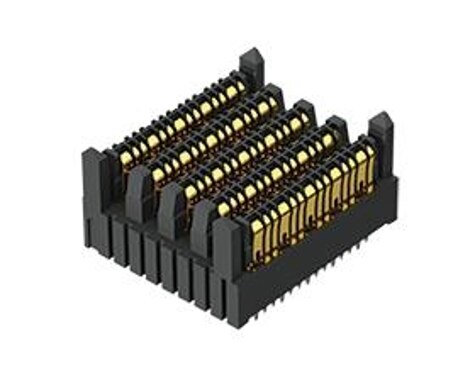

HIGH SPEED / MODULAR CONNECTORS EXAMAX(R) 2.00 MM HIGH-SPEED BACKPLANE VERTICAL HEADER
EBTM-4-08-2.0-S-VT-1-R
ActiveSamtec Inc.
HIGH SPEED / MODULAR CONNECTORS EXAMAX(R) 2.00 MM HIGH-SPEED BACKPLANE VERTICAL HEADER
Description
General part information
EBTM Series
HIGH SPEED / MODULAR CONNECTORS EXAMAX(R) 2.00 MM HIGH-SPEED BACKPLANE VERTICAL HEADER
Technical Specifications
Parameters and characteristics for this part
| Specification | EBTM-4-08-2.0-S-VT-1-R |
|---|---|
| Color | Black |
| Connector Style | ExaMax® Guide Right |
| Connector Type | Male Blades, Header |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Number of Columns | 8 |
| Number of Positions | 64 |
| Number of Positions Loaded | All |
| Number of Rows | 8 |
| Pitch | 0.079 in |
| Termination | Press-Fit |
