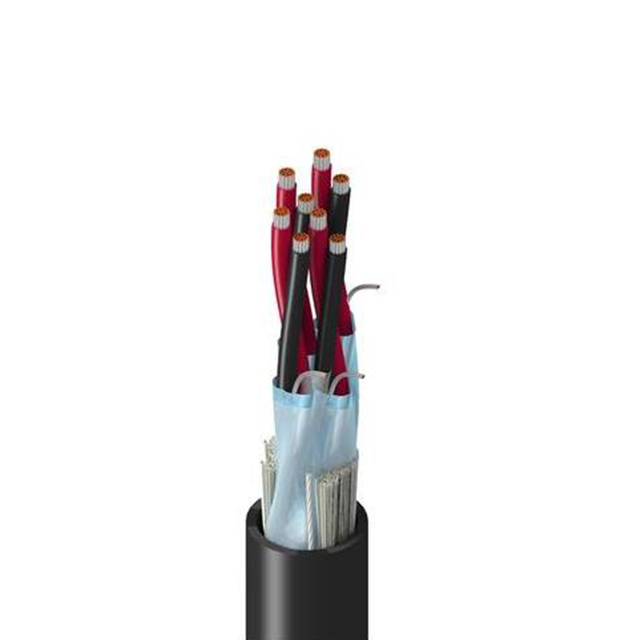

9388 0601000

Active

Belden Inc.

MULTI-PAIR 8COND 18AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8COND 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9388 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	11.71 mm
Jacket (Insulation) Diameter [diameter]	0.461 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Wire Gauge	18 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Ratings	Jacket Color	Jacket (Insulation) Material	Shield Coverage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Shield Type	Conductor Insulation	Number of Conductors	Length	Length	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 9388 0601000	19	30 AWG	18 AWG	Copper Tinned	11.71 mm	0.461 in	Instrumentation	UL Style 2464	Chrome	Poly-Vinyl Chloride (PVC)	100 %	Multi-Pair	-30 ░C	105 ░C	Aluminum	Foil	Poly-Vinyl Chloride (PVC)	8	1000 ft	304.8 m	Drain Wire Rip Cord	1.346 mm	0.053 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 9.28

General part information

8 (4 Pair) Conductor Multi-Pair Cable Chrome 18 AWG Foil 1000.0' (304.8m)
