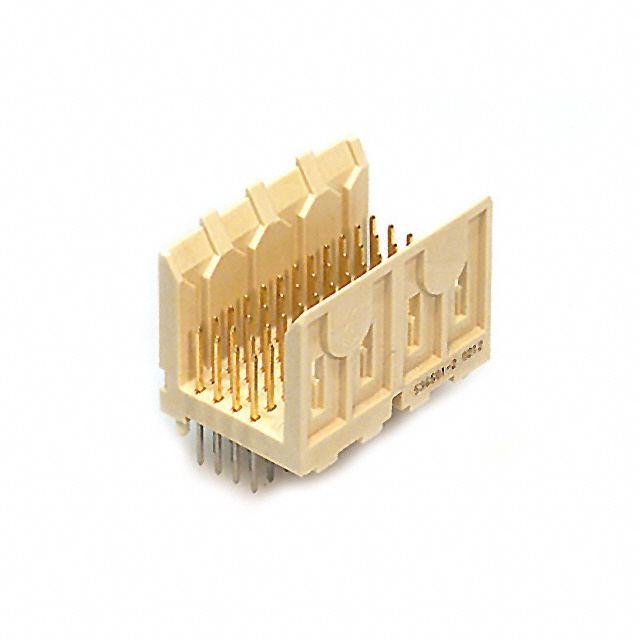

Specification	1-536501-1

Connector Style	Futurebus
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	0.079 in
Termination	Solder
Voltage Rating	30 V

536501 Series

Part	Material Flammability Rating	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Connector Type	Mounting Type	Pitch	Features	Contact Finish Thickness	Number of Positions Loaded	Number of Positions	Number of Rows	Contact Finish	Connector Style
TE Connectivity AMP Connectors 1-536501-1	UL94 V-0	30 V	125 °C	-65 °C	Solder	Header Male Pins	Through Hole	0.079 in	Board Guide	30 µin	All	72	4	Gold	Futurebus
TE Connectivity AMP Connectors 536501-6	UL94 V-0	30 V	125 °C	-55 °C	Solder	Header Male Pins	Through Hole	0.079 in	Board Guide	30 µin	All	120	4	Gold	Futurebus
TE Connectivity AMP Connectors 536501-2	UL94 V-0	30 V	125 °C	-55 °C	Solder	Header Male Pins	Through Hole	0.079 in	Board Guide	30 µin	All	48	4	Gold	Futurebus
TE Connectivity AMP Connectors 536501-3	UL94 V-0	30 V	125 °C	-55 °C	Solder	Header Male Pins	Through Hole	0.079 in	Board Guide	30 µin	All	96	4	Gold	Futurebus
